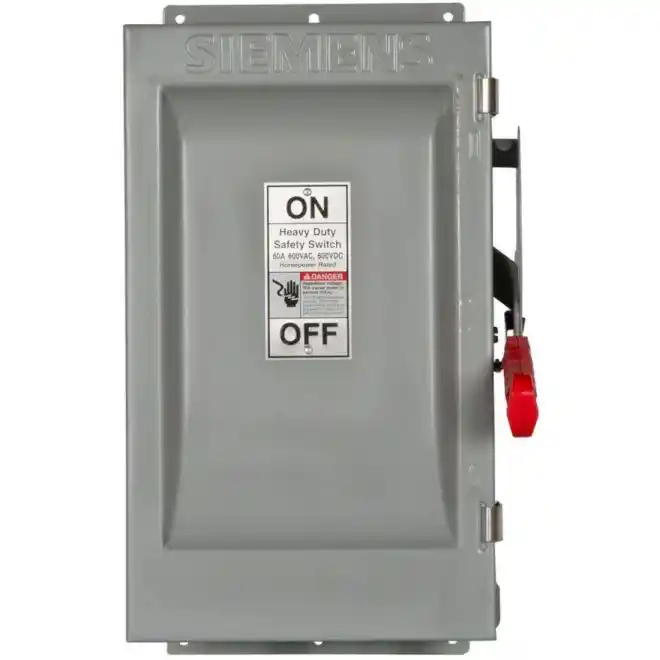

SIEMENS HNF362J Heavy Duty Safety Switches 60A UL
SKU#:
303265
Heavy duty switches feature a time-proven design like Vacu-Break, SIEMENS VBII double-break switching action breaks the arc in two places. This reduces heat generation and increases switching speed by doubling the breaking distance. The result is enhanced performance and increased longevity. All HNF362J VB II safety switches have been tested not only to meet but to exceed all UL requirements. Defeatable dual cover interlocks are standard on all heavy duty switches. NEMA 12 enclosures are intended for indoor use primarily to provide a degree of protection against dust, falling dirt and dripping water. They are not intended to provide protection against conditions such as internal Command.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | HNF362J |
| UPC | 783643151918 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 600VDC |
| Rated Current | 60A |
| Number of Poles | 3 |
| Mounting Type | Surface |
| Type | Heavy-Duty |
| UL Rating Type | NEMA 12 |
| Height (mm) | 491mm |
| Width (mm) | 291mm |
| Depth (Length) (mm) | 266mm |
| Weight (lbs) | 19.00 |
| UOM | ea |
