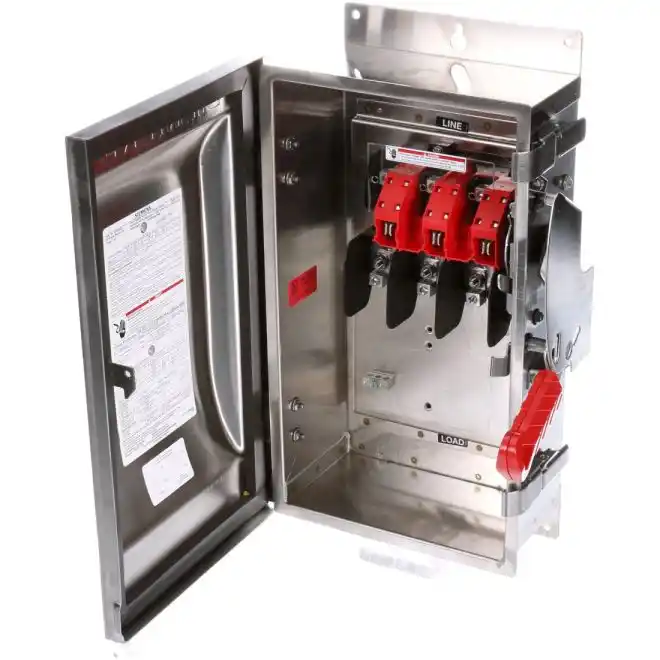

SIEMENS HNF362S Heavy Duty Safety Switches 60A UL
SKU#:
253116
Heavy duty switches feature a time-proven design like Vacu-Break, SIEMENS VBII double-break switching action breaks the arc in two places. This reduces heat generation and increases switching speed by doubling the breaking distance. The result is enhanced performance and increased longevity. All HNF362S VB II safety switches have been tested not only to meet but to exceed all UL requirements. Defeatable dual cover interlocks are standard on all heavy duty switches. Type 4X enclosures are intended for indoor or outdoor use primarily to provide a degree of protection against windblown dust, rain, splashing water and hose directed water. They are not intended to provide protection against conditions such as internal condensation or internal icing. Also meets 4X definition by providing a high degree of protection against corrosion.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | HNF362S |
| UPC | 783643152076 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 600VDC |
| Rated Current | 60A |
| Number of Poles | 3 |
| Mounting Type | Surface |
| Type | Heavy-Duty |
| UL Rating Type | NEMA 4X |
| Height (mm) | 491mm |
| Width (mm) | 291mm |
| Depth (Length) (mm) | 266mm |
| Weight (lbs) | 19.00 |
| UOM | ea |
