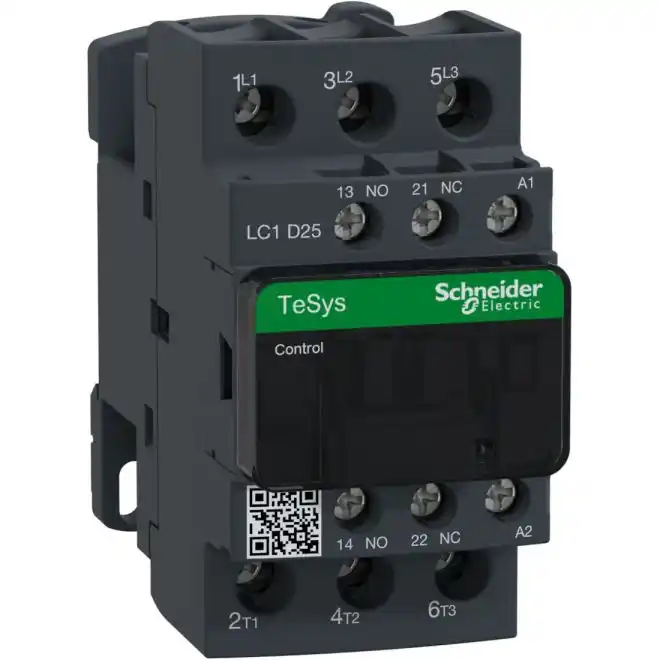

Square D LC1D25G7 IEC Contactor TeSys D 25A 120VAC
SKU#:
207228
Schneider Electric LC1D25G7 D-line contactors are the largest selling line of contactors in the world. Square D TeSys Deca low voltage contactors offer high reliability with long mechanical and electrical life and the most complete line of accessories in the industry. Telemecanique TeSys D contactors are available for inductive motor applications up to 150A full-load amps and resistive loads up to 200A. They offer motor control for motors rated up to 100hp at 480VAC or 125hp at 600VAC. Square D LC1 D25G7 is comparable to LC1D2510G6, LC1D2501G6, Allen-Bradley 100-C23D10, and Eaton Cutler-Hammer CE15ENS3AB.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | LC1D25G7 |
| Manufacturer Alternate Number | LC1 D25G7 |
| UPC | 785901207153 |
| Rated Voltage | 480VAC |
| Coil Voltage | 120VAC |
| Contact Arrangement | 3 N/O |
| Rated Current | 25A |
| Number of Poles | 3 |
| Mounting Type | DIN Rail, Plate |
| Electrical Connection | Screw Terminals |
| Operating Temperature | -40°C - +60°C |
| Duty Cycles | 20,000,000 |
| IP Rating | IP20 |
| HP | 1-Phase: 2hp 115VAC, 3hp at 230VAC/240VAC, 3-Phase: 7.5hp at 200VAC/208VAC, 7.5hp at 230VAC/240VAC, 15hp at 460VAC/480VAC, 20hp at 575VAC/600VAC |
| Type | Non-Reversing Contactor |
| Height (mm) | 85mm |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 92mm |
| Weight (lbs) | 0.82 |
| UOM | ea |
