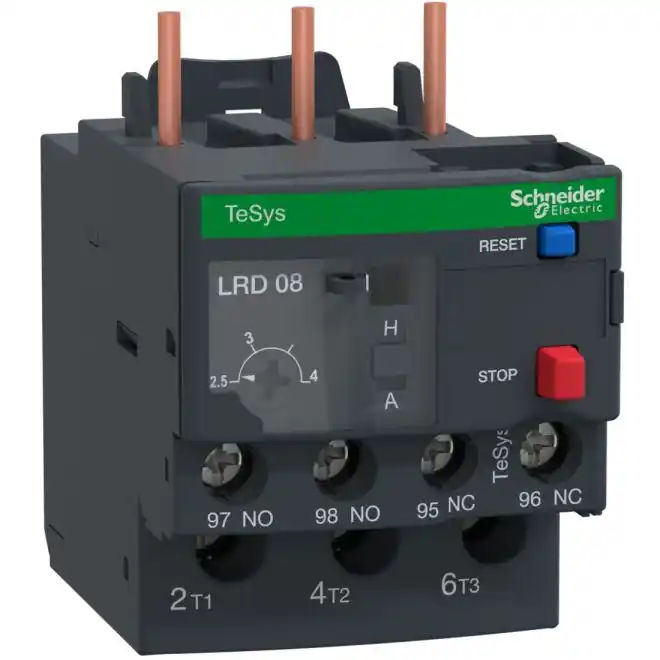

Square D LRD08 Thermal Overload Relay 2.5A - 4A
SKU#:
207418
Schneider Electric LRD08 TeSys Deca overload relays (formerly TeSys LRD). Telemecanique TeSys Deca bimetallic and electronic overload relays directly mount to TeSys D contactors to form extremely compact starters. Square D TeSys Deca features an integrated manual-automatic reset button and simple installation using screw clamp terminals, spring terminals, ring terminals, or EverLink terminals. TeSys Deca thermal overload relays are very reliable and cover a wide range of motor ratings up to 150 A. LRD thermal overload relays can only be mounted on LC1D contactors of same size ratio and with screw clamp connectors. Schneider Electric LRD08 is comparable to Telemecanique LR2D1308, and ABB TA25DU4.0.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | LRD08 |
| Manufacturer Alternate Number | LRD 08 |
| UPC | 785901206750 |
| Rated Voltage | 690VAC |
| Contact Arrangement | 1 N/C + 1 N/O |
| Rated Current | 2.5A - 4A |
| Mounting Type | Plate, DIN Rail, Under Contactor |
| Electrical Connection | Screw Terminals |
| Operating Temperature | -20°C - +60°C |
| IP Rating | IP20 |
| Type | Thermal |
| Height (mm) | 66mm |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 70mm |
| Weight (lbs) | 0.27 |
| UOM | ea |
