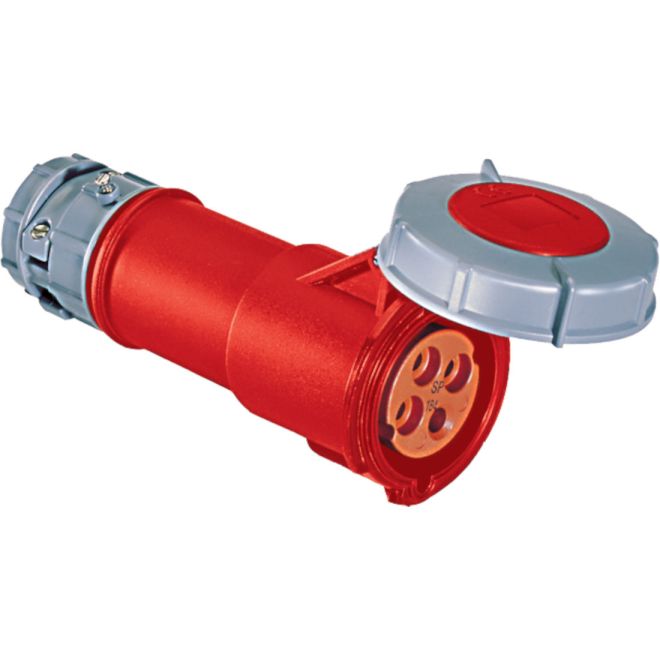

MENNEKES ME520C7W Pin Sleeve Watertight Connector
SKU#:
419081
MENNEKES ME 520C7W IEC 60309-compatible in-line connectors are designed to ensure user safety while providing a simple yet reliable electrical contact. The durable connectors' dead-front construction forms a barrier to protect users from current-carrying parts, and split brass solid sleeves establish a secure connection. Additional features include a high-temperature thermoplastic contact carriers and convenient, field-replaceable flip lid covers and locking rings. Connections are simple thanks to a clock face that represents the grounding contact position. And, MENNEKES color-codes the housings so users can easily identify the industry standard voltage configurations.
| Brand | MENNEKES |
|---|---|
| Manufacturer Part Number | ME520C7W |
| Manufacturer Alternate Number | ME 520C7W |
| Color | Red |
| UL Rating Type | NEMA 4X |
| IP Rating | IP67 |
| Rated Current | 20A |
| Power Phase | 3-Phase |
| Type | Connector |
| Number of Pins/Wires | 5 |
| Rated Voltage | 480VAC/277VAC |
| Number of Poles | 4 |
| Weight (lbs) | 0.56 |
| UOM | ea |
