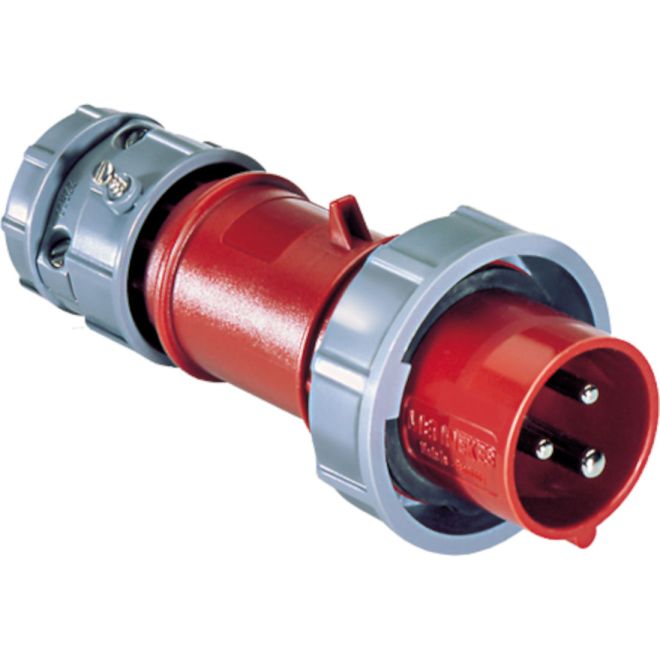

MENNEKES ME520P7W Pin Sleeve Watertight Plug
SKU#:
347118
MENNEKES ME 520P7W pin and sleeve plugs provide clean and secure connections for a wide variety of equipment. These 60309-compliant in-line plugs offer several features to stand up to rigorous industrial environments, including non-metallic housings with locking rings and gaskets for UL Type 4X watertight protection, nickel-plated pins to protect against corrosion and heat-resistant materials to enhance safety. An external strain relief system offers captive stainless hardware, and female-threaded NPT housings let users directly install flex conduit or wire mesh strain-relief fittings without an adapter. MENNEKES ME520P7W is comparable to Hubbell HBL520P7W.
| Brand | MENNEKES |
|---|---|
| Manufacturer Part Number | ME520P7W |
| Manufacturer Alternate Number | ME 520P7W |
| Color | Red |
| UL Rating Type | NEMA 4X |
| IP Rating | IP67 |
| Rated Current | 20A |
| Power Phase | 3-Phase |
| Type | Plug |
| Number of Pins/Wires | 5 |
| Rated Voltage | 480VAC/277VAC |
| Number of Poles | 4 |
| Weight (lbs) | 0.57 |
| UOM | ea |
