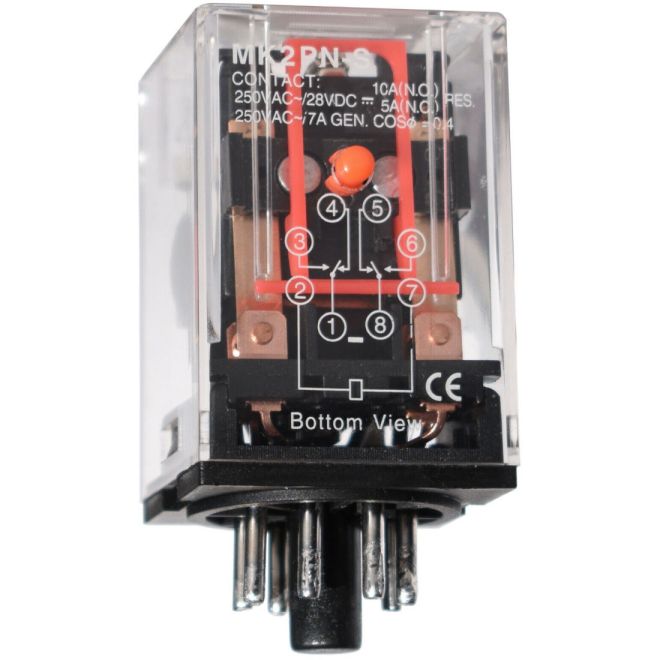

Omron MK2PN-S-AC24 DPDT 24VAC Relay
SKU#:
2501
Omron MK is an exceptionally reliable general purpose relay. Long life (minimum 100,000 electrical operations) assured by silver contacts. MK2PN-S-AC24 has built-in operation indicator (mechanical, LED), diode surge suppression, Varistor surge suppression. The contact operation can be easily checked by mechanical indicator and/or push-to-test button options. Conforms to CENELEC standards. VDE approved versions available. Omron MK2PN-S-AC24 is comparable to TE Connectivity Potter & Brumfield KRPA-11AN-24, IDEC RR2P-UL-AC24.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | MK2PN-S AC24 |
| Manufacturer Alternate Number | MK2PNSAC24 |
| UPC | 4536853632502 |
| Coil Voltage | 24VAC |
| Contact Arrangement | DPDT (2 Form C) |
| Terminal Type | Plug-in |
| Mounting Type | Base/Socket |
| Indicator | Mechanical |
| Test Button | Yes |
| Max. Switching Voltage | 250 VAC, 250 VDC |
| Max. Switching Current | 10 A |
| Rated Current | 7A at 250 VAC |
| Rated Load (Resistive) | 10 A at 250 VAC 10 A at 28 VDC |
| Max. Switching Power(Resistive) | 2,500 VA, 280 W |
| Max. Switching Power (Inductive) | 1,750 VA |
| Minimum Load | 10 mA at 1 VDC |
| Operating Temperature | -10°C - +40°C |
| Power Consumption | Approx. 2.3 VA (60 Hz), 2.7 VA (50 Hz) |
| RoHS Compliant | Yes |
| Duty Cycles | 100,000 |
| Height (mm) | 52.5mm (2.07") |
| Width (mm) | 34.5mm |
| Depth (Length) (mm) | 34.5mm |
| Weight (lbs) | 0.19 |
| UOM | ea |
