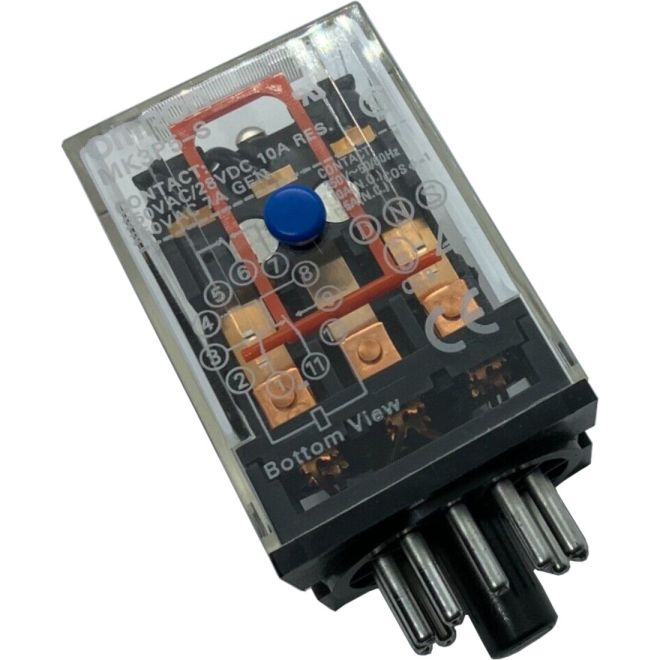

Omron MK3P5-S-DC48 3PDT 48VDC Relay
SKU#:
2567
Omron MK is an exceptionally reliable general purpose relay. Long life (minimum 100,000 electrical operations) assured by silver contacts. MK3P5-S-DC48 has built-in operation indicator (mechanical, LED), diode surge suppression, Varistor surge suppression. The contact operation can be easily checked by mechanical indicator and/or push-to-test button options. Conforms to CENELEC standards. VDE approved versions available.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | MK3P5-S DC48 |
| Manufacturer Alternate Number | MK3P5SDC48 |
| UPC | 4536853638375 |
| Coil Voltage | 48VDC |
| Contact Arrangement | 3PDT (3 Form C) |
| Terminal Type | Plug-in |
| Mounting Type | Base/Socket |
| Indicator | Mechanical |
| Test Button | Yes |
| Max. Switching Voltage | 250 VAC, 250 VDC |
| Max. Switching Current | 10 A |
| Rated Current | 7A at 250 VAC |
| Rated Load (Resistive) | 10 A at 120 VAC 10 A at 28 VDC 10 A at 250 VAC |
| Max. Switching Power(Resistive) | 2,500 VA / 1,250 VA, (NO/NC Contacts) 280 W |
| Max. Switching Power (Inductive) | 1,750 VA |
| Minimum Load | 10 mA at 1 VDC |
| Operating Temperature | -10°C - +40°C |
| Power Consumption | Approx. 1.5 W |
| RoHS Compliant | Yes |
| Duty Cycles | 100,000 |
| Height (mm) | 52.5mm (2.07") |
| Width (mm) | 34.5mm |
| Depth (Length) (mm) | 34.5mm |
| Weight (lbs) | 0.19 |
| UOM | ea |
