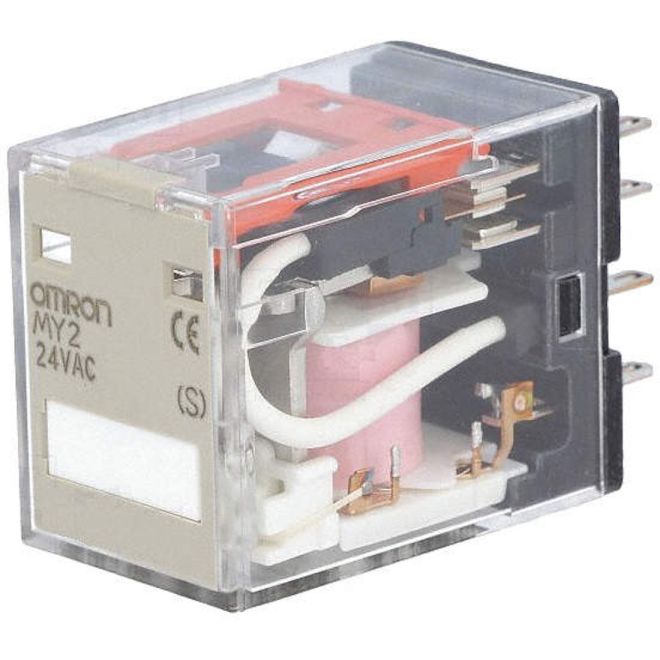

Omron MY2 AC24 (S) DPDT Miniature Power Relay
SKU#:
2643
Omron's MY series relay has been the industry leader for over 15 years. Along with its world wide recognition, diverse contact configuration (DPDT 4PDT) and many different coil voltages (10 different AC and DC), MY2 AC24 (S) also includes standard options such as: push to test button, mechanical indicator, LED indicator and write-on nameplate. Omron MY2 AC24 (S) is comparable to TE Connectivity Potter & Brumfield KHAU-11A11-120, IDEC RM2S-U-AC24, Finder 55.32.8.024.0050.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | MY2 AC24 (S) |
| Manufacturer Alternate Number | MY2AC24S |
| UPC | 4536854362804 |
| Coil Voltage | 24VAC |
| Contact Arrangement | DPDT (2 Form C) |
| Terminal Type | Plug-in |
| Mounting Type | Base/Socket |
| Max. Switching Voltage | 250 VAC, 125 VDC |
| Max. Switching Current | 10 A |
| Rated Current | 2 A at 250 VAC, 2 A at 30 VDC |
| Rated Load (Resistive) | 5 A at 250 VAC, 5 A at 30 VDC |
| Max. Switching Power(Resistive) | 1,100 VA, 120 W |
| Max. Switching Power (Inductive) | 440 VA, 48 W |
| Minimum Load | 1 mA at 5 VDC |
| Operating Temperature | -55°C - +70°C |
| Power Consumption | Approx. 0.9 VA to 1.3 VA (60 Hz) |
| RoHS Compliant | Yes |
| Duty Cycles | 500,000 |
| Height (mm) | 42.4mm |
| Width (mm) | 28mm |
| Depth (Length) (mm) | 21.5mm |
| Weight (lbs) | 0.08 |
| UOM | ea |
