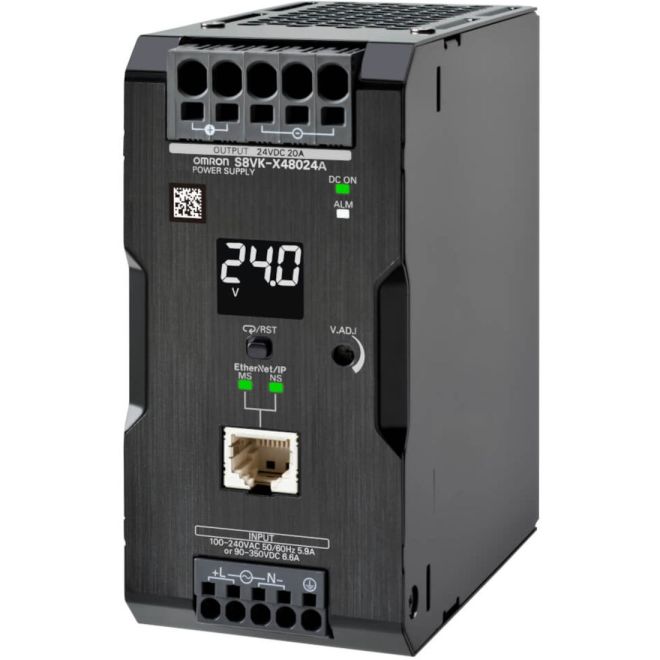

Omron S8VK-X48024A-EIP 480W 24VDC 20A Power Supply
SKU#:
590096
The S8VK-X is an advanced DIN rail power supply that provides real-time monitoring of the power supply life, voltage, current, and peak current. These built-in features allow predictive maintenance to be performed on industrial equipment. Omron provides a PC monitoring software that can remotely monitor the conditions of multiple S8VK-X48024A-EIP power supplies. Omron S8VK also offers high resistance to the vibration transmitted by machinery up to 5 G's. Designed to international safety standards for global markets, the S8VK even has approvals for marine applications (Lloyds approval) and carries an across-the-board, 5 year warranty on all models no matter which country your machine is exported to!
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | S8VK-X48024A-EIP |
| Manufacturer Alternate Number | S8VKX48024AEIP |
| UPC | 4549734172745 |
| Communications | EtherNet/IP, Modbus TCP |
| Display | Output Voltage, Output Current, Peak Hold Current, Years Until Replacement, Percentage Until Replacement, Total Run Time |
| Supply Voltage Range | 100VAC - 240VAC |
| Output Voltage DC | 24VDC |
| Output Power | 480W |
| Output Current | 20A |
| Electrical Connection | Push-in Plus Terminal |
| Cooling Type | Natural (Gravity) |
| Enclosure Type | Enclosed |
| Mounting Type | DIN Rail |
| Overload Protection | Yes |
| Overvoltage Protection | Yes |
| Series Operation | Yes, up to 2 |
| Parallel Operation | Yes, up to 2 |
| Preventive Maintenance Alarm Output | Yes, via Local Indicator or EtherNet/IP |
| Power Boost, Momentary | Yes, 150% Rated Voltage, 10s or Less |
| Standards | UL, UL508, cUL:CSA C22.2, cUR: CSA C22.2, Lloyds, PELV |
| Height (mm) | 124mm |
| Width (mm) | 60mm |
| Depth (Length) (mm) | 121.4mm |
| Weight (lbs) | 2.43 |
| UOM | ea |
