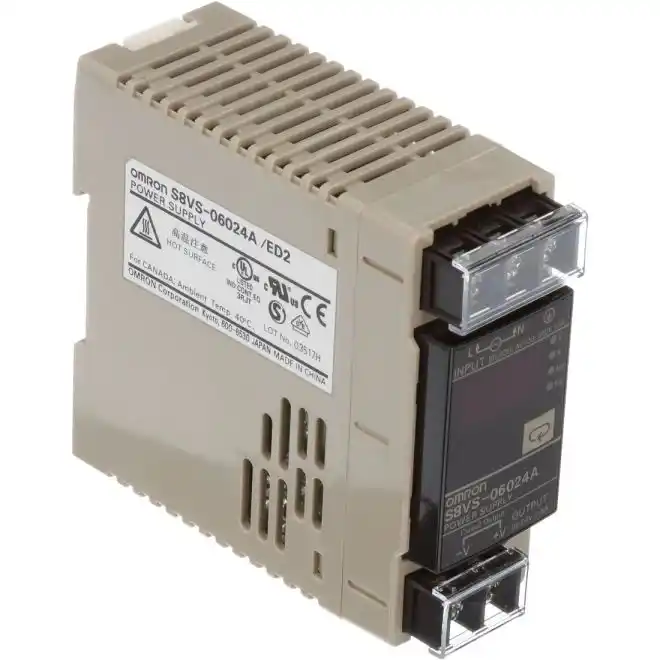

Omron S8VS-06024A 60W 2.5A 24VDC Power Supply
SKU#:
260985
Omron's S8VS-Series switching power supplies with built-in diagnostic displays support preventive maintenance programs and shorten trouble-shooting inside the control panel. The S8VS-06024A UL508 listed power supply combined with a built-in Smart Display provides operators with at-a-glance status of output voltage, output current and peak hold current. The S8VS meets international safety standards, including UL, cUL, UL508 Listed and CE. All models have a universal input 100 to 240 VAC (85 to 264 VAC operating range). Omron S8VS-06024A is comparable to Allen-Bradley 1606-XLP50EZ, Sola Hevi-Duty SDN4-24-100LP, Puls ML60.241.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | S8VS-06024A |
| Manufacturer Alternate Number | S8VS06024A |
| UPC | 4547648639927 |
| Display | Lifetime Display |
| Supply Voltage Range | 100VAC - 240VAC |
| Output Voltage DC | 24VDC |
| Output Power | 60W |
| Output Current | 2.5A |
| Electrical Connection | Screw Terminals |
| Cooling Type | Natural (Gravity) |
| Enclosure Type | Enclosed |
| Mounting Type | DIN Rail |
| Overload Protection | Yes |
| Overvoltage Protection | Yes |
| Under-Voltage Alarm | Yes |
| Series Operation | No |
| Parallel Operation | Yes |
| Preventive Maintenance Alarm Output | No |
| Standards | UL, UR, cUL, cUR,VDE |
| Height (mm) | 95mm (3.74") |
| Width (mm) | 40mm |
| Depth (Length) (mm) | 103.3mm |
| Weight (lbs) | 0.73 |
| UOM | ea |
