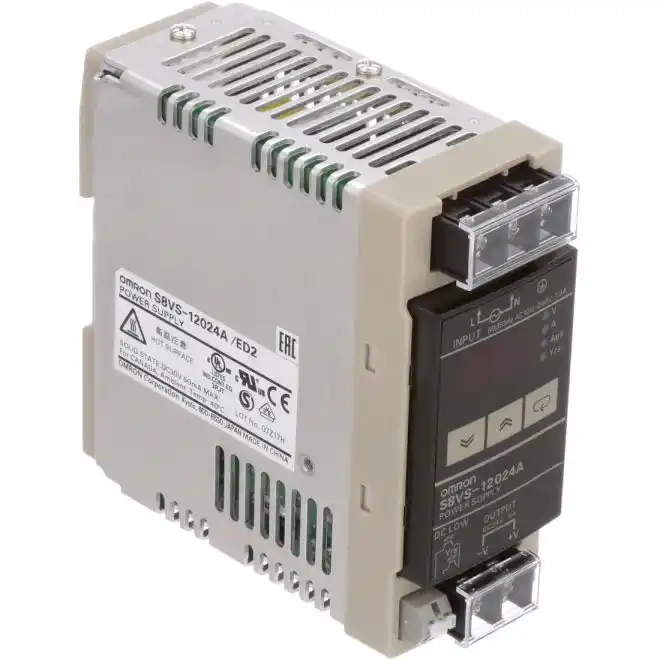

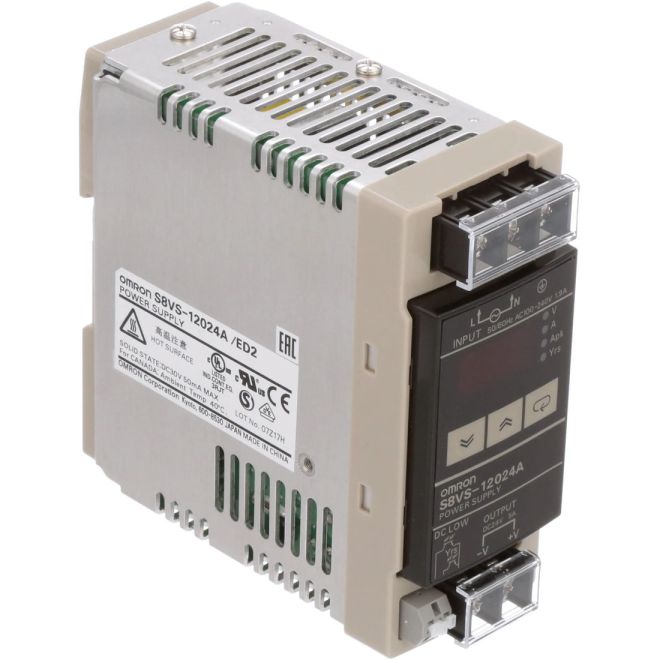

Omron S8VS-12024A 120W 5A 24VDC Power Supply
SKU#:
264559
Omron's S8VS-Series switching power supplies with built-in diagnostic displays support preventive maintenance programs and shorten trouble-shooting inside the control panel. The S8VS-12024A UL508 listed power supply combined with a built-in Smart Display provides operators with at-a-glance status of output voltage, output current and peak hold current. The S8VS meets international safety standards, including UL, cUL, UL508 Listed and CE. All models have a universal input 100 to 240 VAC (85 to 264 VAC operating range). Omron S8VS-12024A is comparable to Allen-Bradley 1606-XLS120E.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | S8VS-12024A |
| Manufacturer Alternate Number | S8VS12024A |
| UPC | 4547648639965 |
| Display | Lifetime Display |
| Supply Voltage Range | 100VAC - 240VAC |
| Output Voltage DC | 24VDC |
| Output Power | 120W |
| Output Current | 5A |
| Electrical Connection | Screw Terminals |
| Cooling Type | Natural (Gravity) |
| Enclosure Type | Enclosed |
| Mounting Type | DIN Rail |
| Overload Protection | Yes |
| Overvoltage Protection | Yes |
| Under-Voltage Alarm | No |
| Series Operation | Yes |
| Parallel Operation | No |
| Preventive Maintenance Alarm Output | Yes |
| Standards | UL508 Class 2, UL, UR, cUL, cUR,VDE |
| Height (mm) | 115mm |
| Width (mm) | 50mm |
| Depth (Length) (mm) | 116.2mm |
| Weight (lbs) | 1.21 |
| UOM | ea |
