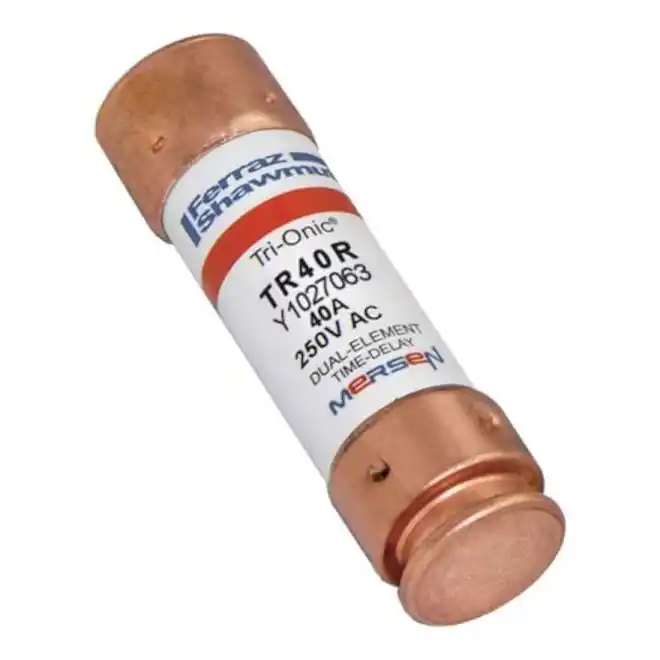

Mersen TR40R Ferraz Time Delay/Class RK5 Fuse
SKU#:
610042
With advanced material technology added to the existing product, Mersen Tri-Onic® TR and TRS current-limiting time-delay fuses are engineered for overcurrent protection of motors and transformers, service entrance equipment, feeder and branch circuits. TR40R Tri-Onic fuse's proven time-delay characteristic safely handles harmless starting currents and inrush currents associated with today's motors and transformers. Now available with optional SmartSpot® blown fuse indication technology.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | TR40R |
| Manufacturer Alternate Number | Y1027063 |
| UPC | 0782001747916 |
| Rated Voltage AC | 250VAC |
| Rated Voltage DC | 250VDC |
| Frequency | 50/60Hz |
| Rated Current | 40A |
| RoHS Compliant | Yes |
| Fuse Class | RK5 |
| Speed/Characteristic | Time Delay |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 200kA |
| Connection/Terminal Material | Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | Poly Tube |
| Type | Time Delay |
| Height (mm) | 21mm (0.83") |
| Width (mm) | 21mm |
| Depth (Length) (mm) | 77mm |
| Weight (lbs) | 0.14 |
| UOM | ea |
