RITTAL 8018803 TSFM634720NC TS8 Floormount Box TS
SKU#:
507779

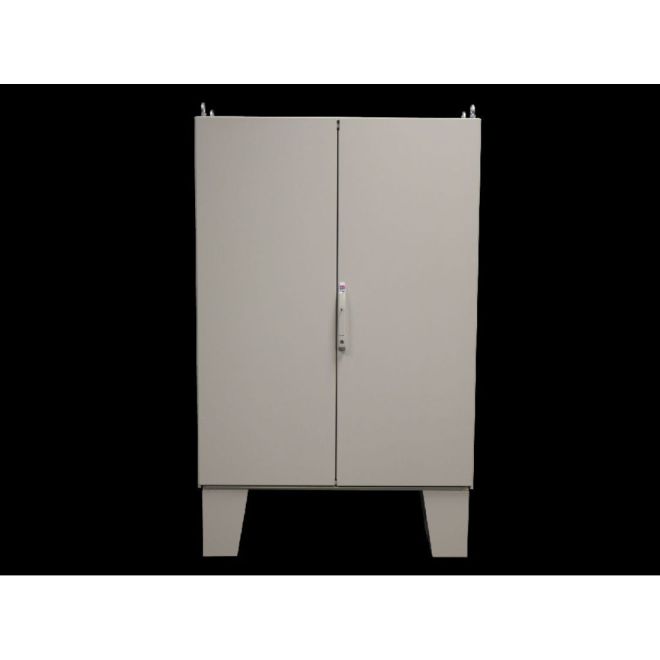

Rittal's TSFM634720NC 8018803 Floormount TS 8 combines the strength of unibody floormount enclosures with the flexibility of Rittal's revolutionary modular design. With its double door configuration and wide range of accessories Rittal's Floormount TS 8 is sure to meet your UL Type 12 needs.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8018803 |
| Manufacturer Alternate Number | TSFM634720NC |
| UPC | 639889843691 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 12 |
| IP Rating | IP55 |
| Supply Includes | Mounting Plate, 4 Eyebolts, Roof Plate, Base Plates, Enclosure Frame with Doors, 12" Removable Floor Stands, Rear Panel, Sidewalls, Comfort Handle with Pushbutton Key Lock |
| Material Thickness | Door: 2mm (0.08") Enclosure Frame, Rear Wall, Roof & Base Plates: 1.5mm (0.06") |
| Mounting Plate | Zinc-Plated 3mm (0.12") |
| Height (mm) | 1600mm (63") |
| Width (mm) | 1200mm (47") |
| Depth (Length) (mm) | 500mm (20") |
| Weight (lbs) | 238.10 |
| UOM | ea |
