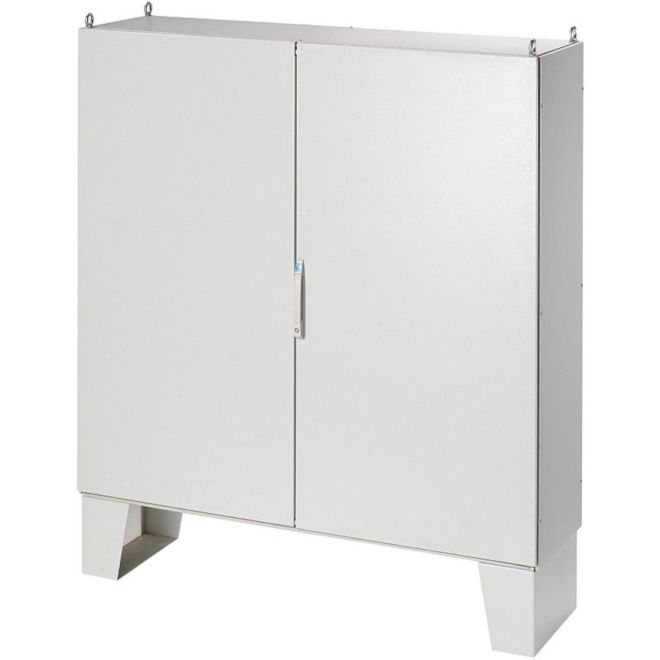

RITTAL 8018798 TSFM717112NC TS8 Floormount Box TS
SKU#:
507777
Rittal's TSFM717112NC 8018798 Floormount TS 8 combines the strength of unibody floormount enclosures with the flexibility of Rittal's revolutionary modular design. With its double door configuration and wide range of accessories Rittal's Floormount TS 8 is sure to meet your UL Type 12 needs.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8018798 |
| Manufacturer Alternate Number | TSFM717112NC |
| UPC | 639889843646 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 12 |
| IP Rating | IP55 |
| Supply Includes | Mounting Plate, 4 Eyebolts, Roof Plate, Base Plates, Enclosure Frame with Doors, 12" Removable Floor Stands, Rear Panel, Sidewalls, Comfort Handle with Pushbutton Key Lock |
| Material Thickness | Door: 2mm (0.08") Enclosure Frame, Rear Wall, Roof & Base Plates: 1.5mm (0.06") |
| Mounting Plate | Zinc-Plated 3mm (0.12") |
| Height (mm) | 1800mm (71") |
| Width (mm) | 1800mm (71") |
| Depth (Length) (mm) | 300mm (12") |
| Weight (lbs) | 546.75 |
| UOM | ea |
