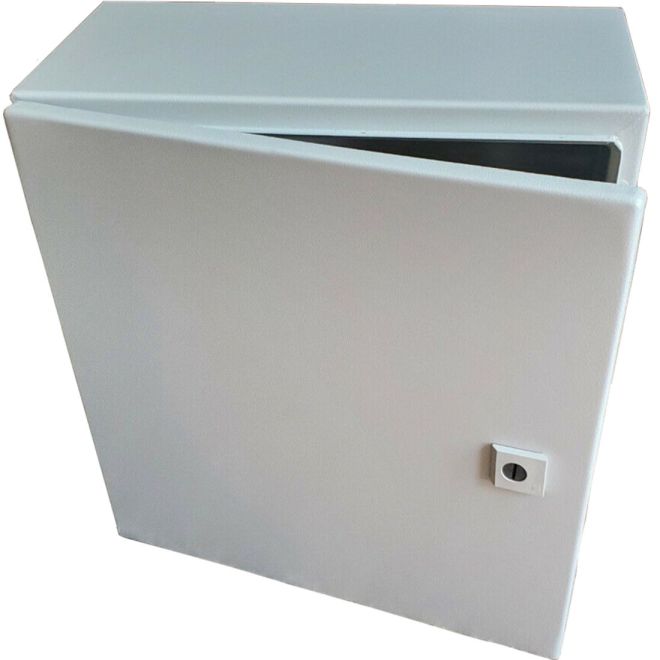

RITTAL 1244250 WM161608NC 16" 16" 8" NEMA 4 Box

SKU#:

364221

You have known Rittal quality in WM161608NC 1244250 wallmount enclosures for years. Now you can get the industry's higest-quality enclosures in over 100 standard sizes, available in both carbon and stainless steel. One-piece welded cold-rolled steel body left-hand hinged door (the carbon steel single door configuration is reversible.), Single door enclosures less than 20" in height have one 1/4 turn latch with screwdriver insert, Single door enclosures 20 - 40" in height have two 1/4-turn latches with screwdriver inserts, Single door enclosures greater than or equal to 42" in height have a 3-point latching tool-to-open L-handle, Double door and disconnect enclosures have a 3-point latching tool-to-open L-handle, Wallmounting holes (carbon steel versions) and blind riv-nuts (stainless steel versions), Foamed-in-place gasket, and Slope Top enclosures have a 20° sloped roof that overhangs the door. Rittal WM161608NC is comparable to Hubbell Wiegmann N412161608, Hoffman Concept CSD16168, Saginaw SCE Enviroline SCE-16EL1608LP, Rittal L W161608.
Specifications
Brand RITTAL
Manufacturer Part Number 1244250
Manufacturer Alternate Number WM161608NC
UPC 639889831131
Material Carbon Steel
Surface Finish Powder-Coated
Color RAL 7035
UL Rating Type NEMA 4
IP Rating IP66
Supply Includes Mounting Plate, Housing with Door, Rear Wall Mounting Holes
Material Thickness Housing, Door, Mounting Plate: 1.5mm (0.06")
Mounting Plate Zinc-Plated 375mm (15") x 354mm (14")
Latching System Slotted Head Insert Quarter Turn Latch
Door Cover Style Left Hand Hinged
Number of Doors 1
Height (mm) 400mm (16")
Width (mm) 400mm (16")
Depth (Length) (mm) 210mm (8.3")
Weight (lbs) 23.05
UOM ea
