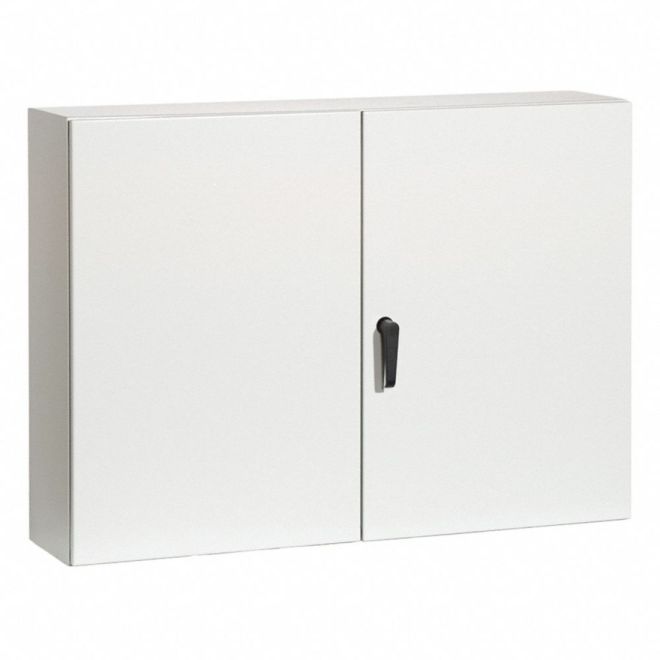

RITTAL 8017582 WM364212NC 36" 42" 12" NEMA 12 Box

SKU#:

368182

You have known Rittal quality in WM364212NC 8017582 wallmount enclosures for years. Now you can get the industry's higest-quality enclosures in over 100 standard sizes, available in both carbon and stainless steel. One-piece welded cold-rolled steel body left-hand hinged door (the carbon steel single door configuration is reversible.), Single door enclosures less than 20" in height have one 1/4 turn latch with screwdriver insert, Single door enclosures 20 - 40" in height have two 1/4-turn latches with screwdriver inserts, Single door enclosures greater than or equal to 42" in height have a 3-point latching tool-to-open L-handle, Double door and disconnect enclosures have a 3-point latching tool-to-open L-handle, Wallmounting holes (carbon steel versions) and blind riv-nuts (stainless steel versions), Foamed-in-place gasket, and Slope Top enclosures have a 20° sloped roof that overhangs the door.
Specifications
Brand RITTAL
Manufacturer Part Number 8017582
Manufacturer Alternate Number WM364212NC
UPC 639889831599
Material Carbon Steel
Surface Finish Powder-Coated
Color RAL 7035
UL Rating Type NEMA 12
IP Rating IP55
Supply Includes Mounting Plate, Housing with Doors, Rear Wall Mounting Holes
Material Thickness Housing, Door: 2mm (0.08"), Mounting Plate: 2.5mm (0.1")
Mounting Plate Zinc-Plated 850mm (33") x 1000mm (39")
Latching System 3-Point Latching L-Handle
Door Cover Style Left Hand Hinged
Number of Doors 2
Height (mm) 900mm (35")
Width (mm) 1050mm (41")
Depth (Length) (mm) 300mm (12")
Weight (lbs) 167.55
UOM ea
