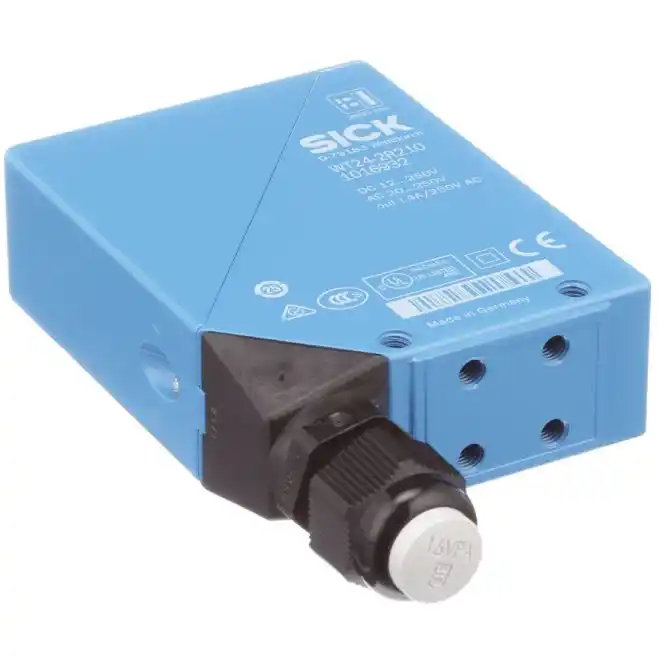

SICK WT24-2R210 1016932 Photoelectric Sensors

SKU#:

146134

SICK W24 features a rugged metal housing that has passed IP69K testing, which ensures reliability in harsh industrial conditions. WT24-2R210 1016932 sensors are highly resistant to ambient light and offer a very long sensing range with a high operating reserve. As a result, there are optional a standard front lens heating or a high-power front lens heating versions, similar to automotive rear window defrost, for use in environments with extreme temperatures fluctuation. An alarm output option enables early detection of contamination, reducing downtime that results from contamination interruptions. Variants with DC voltage and universal voltage DC/AC and multiple connectivity options provide additional flexibility within the W24 family. The sensors conform with the 2G category for explosive zones, which enhances their range of applications even further. SICK WT24-2R210 is comparable to Replacement Type: WT24-R2101 Part number: 1011418.
Specifications
Brand SICK
Manufacturer Part Number 1016932
Manufacturer Alternate Number WT24-2R210
Body Type Rectangular
Type Photoelectric Proximity, Background Suppression
Operation Light/Dark Switching
Supply Voltage Range 20VAC/20VDC - 250VAC/250VDC
Material Metal, Zinc Diecast
Sensing Method Diffuse
Sensing Range 0.1m - 2.5m
Output Type Relay, Electrically Isolated
Output Function Change Over Contacts
Light Source Infrared LED
Electrical Connection Terminal Connection with M16 Gland
IP Rating IP67
Height (mm) 87.5mm (3.45")
Width (mm) 27mm
Depth (Length) (mm) 65mm
Weight (lbs) 0.89
UOM ea
