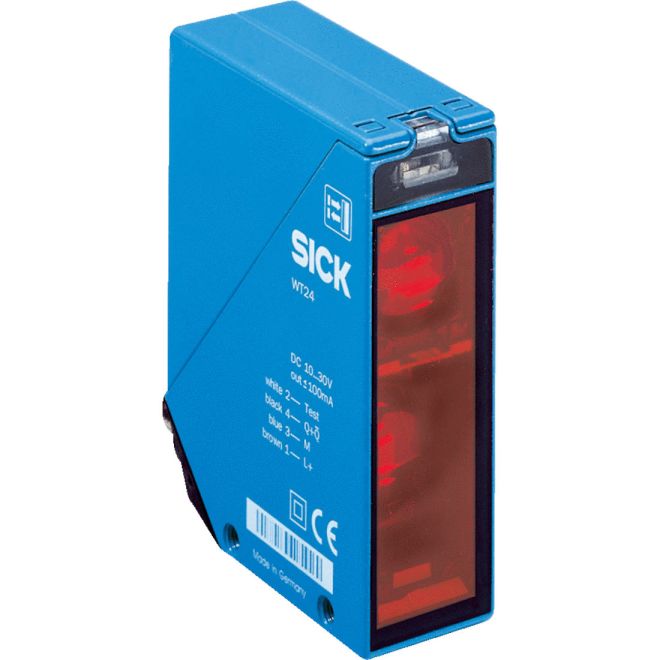

SICK WT24-2R220S21 1016854 Photoelectric Sensors

SKU#:

310691

SICK W24 features a rugged metal housing that has passed IP69K testing, which ensures reliability in harsh industrial conditions. WT24-2R220S21 1026414 sensors are highly resistant to ambient light and offer a very long sensing range with a high operating reserve. As a result, there are optional a standard front lens heating or a high-power front lens heating versions, similar to automotive rear window defrost, for use in environments with extreme temperatures fluctuation. An alarm output option enables early detection of contamination, reducing downtime that results from contamination interruptions. Variants with DC voltage and universal voltage DC/AC and multiple connectivity options provide additional flexibility within the W24 family. The sensors conform with the 2G category for explosive zones, which enhances their range of applications even further.
Specifications
Brand SICK
Manufacturer Part Number 1026414
Manufacturer Alternate Number WT24-2R220S21
Body Type Rectangular
Type Photoelectric Proximity, Background Suppression
Operation Light/Dark Switching
Supply Voltage Range 20VAC/20VDC - 250VAC/250VDC
Material Metal, Zinc Diecast
Sensing Method Diffuse
Sensing Range 0.1m - 2.5m
Output Type Relay, Electrically Isolated
Output Function Change Over Contacts
Light Source Infrared LED
Electrical Connection Removeable PG Connector
IP Rating IP67
Height (mm) 87.5mm (3.45")
Width (mm) 27mm
Depth (Length) (mm) 65mm
Weight (lbs) 0.89
UOM ea
