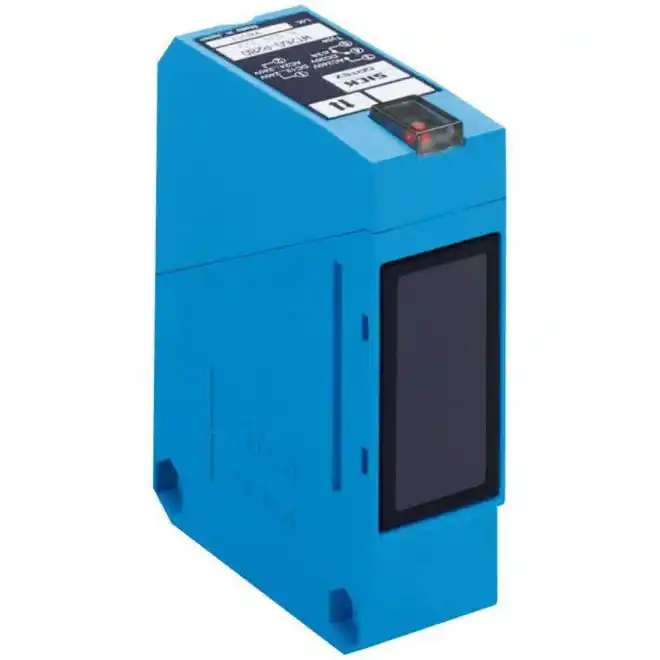

SICK WT260-R260 6009472 Photoelectric Sensors
SKU#:
130641
SICK W260 family has six different sensing types available. This means the same housing may be used to solve many different applications, making the W260 extremely versatile. In addition, all versions are available with DC voltage or universal AC/DC voltage. All WT260-R260 6009472 sensor configuration controls are easily accessible and protected by a cover. A mounting bracket and a reflector (WL260 only)are provided to simplify installation.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 6009472 |
| Manufacturer Alternate Number | WT260-R260 |
| Body Type | Rectangular |
| Type | Photoelectric Proximity, Background Suppression |
| Operation | Light/Dark Switching |
| Supply Voltage Range | 12VDC - 240VDC, 24VAC - 240VAC |
| Material | Plastic, ABS |
| Sensing Method | Diffuse |
| Sensing Range | 0mm - 380mm |
| Output Type | Relay, Electrically Isolated |
| Output Function | Normally Open |
| Light Source | Infrared LED |
| Electrical Connection | Cable Gland |
| IP Rating | IP66 |
| Special Function | One Shot, Off Delay, On Delay, without Time Delay |
| Height (mm) | 77.8mm |
| Width (mm) | 25mm |
| Depth (Length) (mm) | 63mm |
| Weight (lbs) | 0.53 |
| UOM | ea |
