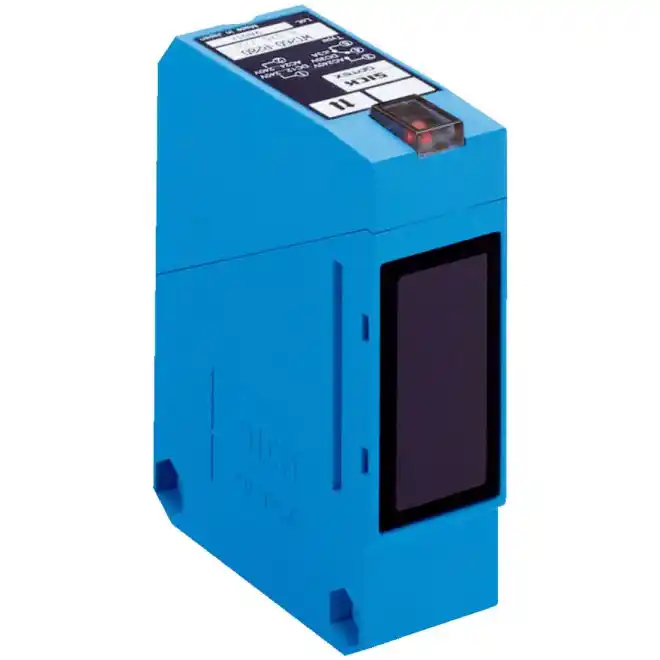

SICK WT260-R270 6020770 Photoelectric Sensors
SKU#:
146543
SICK W260 family has six different sensing types available. This means the same housing may be used to solve many different applications, making the W260 extremely versatile. In addition, all versions are available with DC voltage or universal AC/DC voltage. All WT260-R270 6020770 sensor configuration controls are easily accessible and protected by a cover. A mounting bracket and a reflector (WL260 only)are provided to simplify installation. SICK WT260-R270 is comparable to Replacement Type: WT260-R230 Part Number: 6008774.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 6020770 |
| Manufacturer Alternate Number | WT260-R270 |
| Body Type | Rectangular |
| Type | Photoelectric Proximity, Energetic |
| Operation | Light Switching |
| Supply Voltage Range | 12VDC - 240VDC, 24VAC - 240VAC |
| Material | Plastic, ABS |
| Sensing Method | Diffuse |
| Sensing Range | 5mm - 1.7m |
| Output Type | Relay, Electrically Isolated |
| Output Function | Change Over Contacts |
| Light Source | Red LED |
| Electrical Connection | Cable Gland |
| IP Rating | IP67 |
| Special Function | Off Delay, On Delay |
| Height (mm) | 78mm |
| Width (mm) | 25mm |
| Depth (Length) (mm) | 63mm |
| Weight (lbs) | 0.49 |
| UOM | ea |
