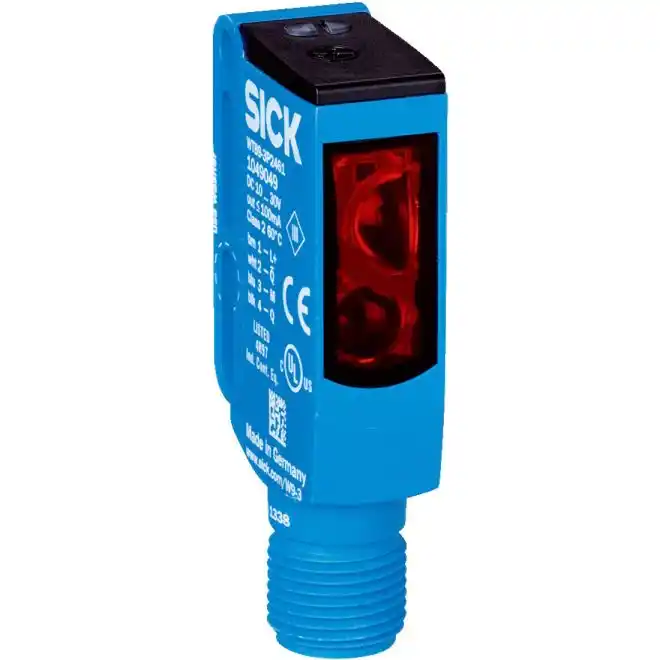

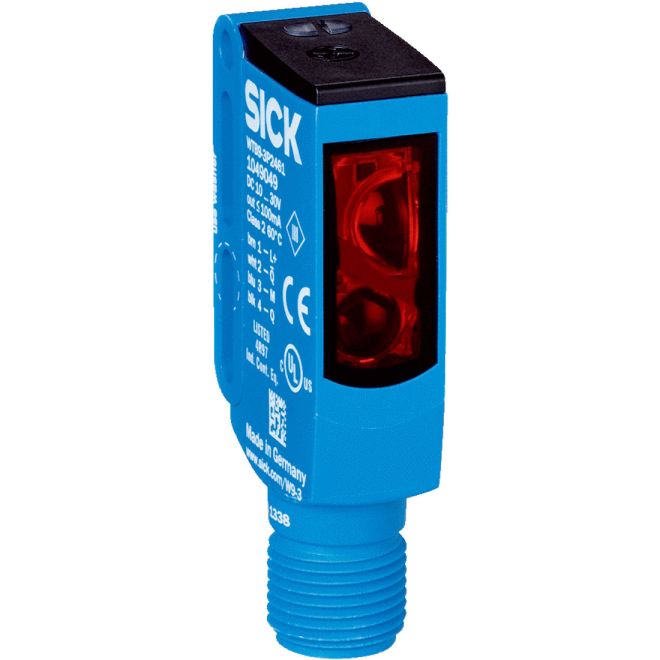

SICK WTB9-3P2461 1049049 Photoelectric Sensors

SKU#:

418506

The rugged photoelectric sensors of SICK W9 product family reliably detect objects and items regardless of the type or quality.The WTB9-3P2461 1049049 achieves high sensing ranges thanks to the PinPoint LED and laser technology. The portfolio contains photoelectric proximity sensors with excellent background suppression, photoelectric retro-reflective sensors with autocollimation optics and through-beam photoelectric sensors. The W9 thereby offers the right principle of operation for any detection task. The rugged VISTAL™ housing offers very high mechanical stability and therefore high sensor availability. The use of glass-fiber reinforced plastic combined with high-performance adhesives ensures excellent housing sealing and makes it resistant to cleaning agents. The laser inscription is easy to read even if the sensor has already been in use for years.
Specifications
Brand SICK
Manufacturer Part Number 1049049
Manufacturer Alternate Number WTB9-3P2461
Body Type Rectangular
Type Photoelectric Proximity, Background Suppression
Operation Light/Dark Switching
Supply Voltage Range 10VDC - 30VDC
Material Plastic, VISTAL
Sensing Method Diffuse
Sensing Range 20mm - 350mm
Output Type PNP
Output Function Complementary
Light Source Red LED
Electrical Connection Male Connector M12, 4-Pin
IP Rating IP66, IP67, IP69K
Height (mm) 52.2mm (2.06")
Width (mm) 12.2mm
Depth (Length) (mm) 23.6mm
Weight (lbs) 0.11
UOM ea
