Mersen 08530 Polycarbonate Safety Cover F213445
SKU#:
35328

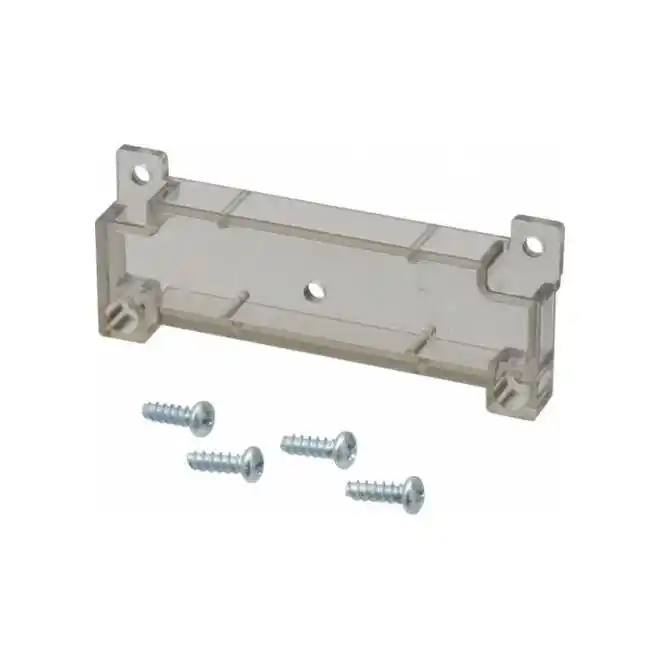

Mersen polycarbonate safety cover provides dead-front protection to 62000 and 63000 series mini power distribution blocks. One 08530 cover is needed for each pole (1-pole block requires 1 cover, 3-pole requires 3 covers, etc.) Each cover has a test prod hole in the center for circuit checking and each is marked with the reminder "REPLACE AFTER SERVICING EQUIPMENT". To order, simply determine the total number of poles to be protected and specify the same number of Ferraz Shawmut 08530 safety covers. Mounting screws are supplied with cover. Recommended mounting screws for all 62000-63000 series: #10 (.190" diameter). Gould 08530 covers are comparable to Mersen MPDBC6263.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | 08530 |
| Manufacturer Alternate Number | F213445 |
| UPC | 782001754112 |
| Height (mm) | 11mm (0.43") |
| Width (mm) | 28mm |
| Depth (Length) (mm) | 72mm |
| Weight (lbs) | 0.04 |
| UOM | ea |
