Mersen 08570 Polycarbonate Safety Covers B213947
SKU#:
35329

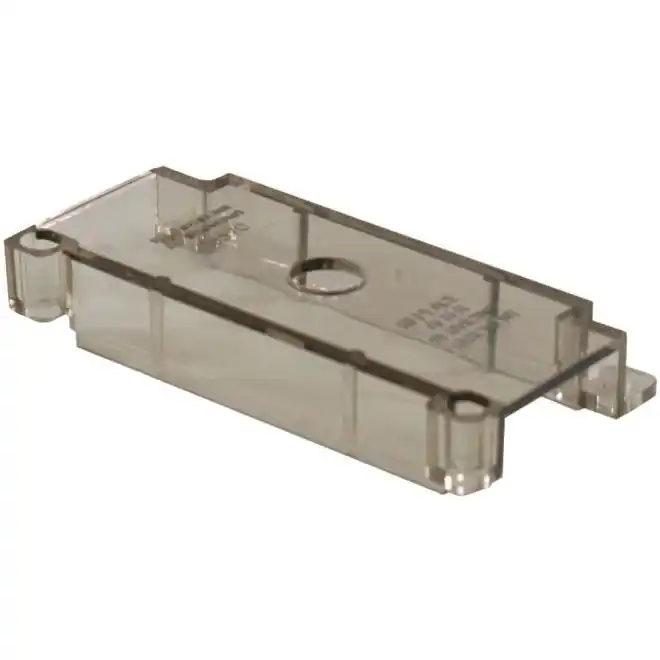

Mersen polycarbonate safety cover provides dead-front protection to 66000 and 67000 series intermediate power distribution blocks. One 08570 cover is needed for each pole (1-pole block requires 1 cover, 3-pole requires 3 covers, etc.) Each cover has a test prod hole in the center for circuit checking and each is marked with the reminder "REPLACE AFTER SERVICING EQUIPMENT". To order, simply determine the total number of poles to be protected and specify the same number of Ferraz Shawmut 08570 safety covers. Mounting screws are supplied with cover. Recommended mounting screws for all 66000-67000 series: #10 (.190" diameter). Gould 08570 is comparable to Mersen MPDBC6667.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | 08570 |
| Manufacturer Alternate Number | B213947 |
| UPC | 782001754129 |
| Height (mm) | 16mm (0.63") |
| Width (mm) | 52mm |
| Depth (Length) (mm) | 99mm |
| Weight (lbs) | 0.06 |
| UOM | ea |
