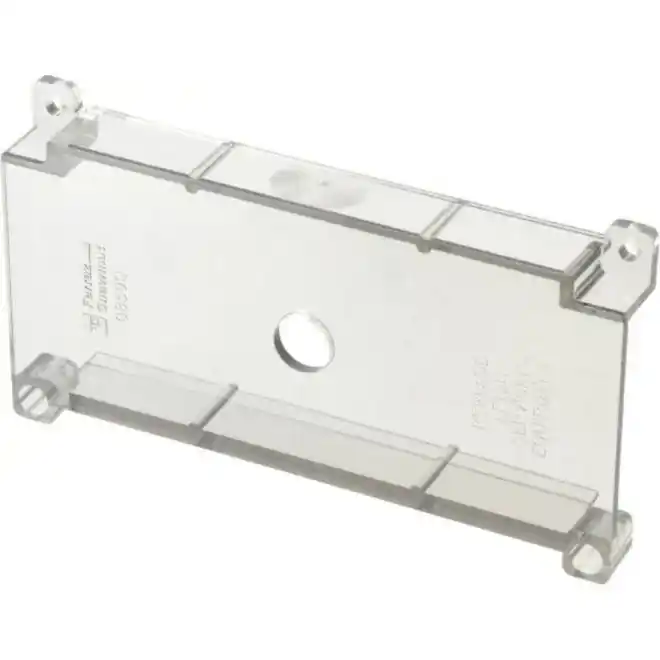

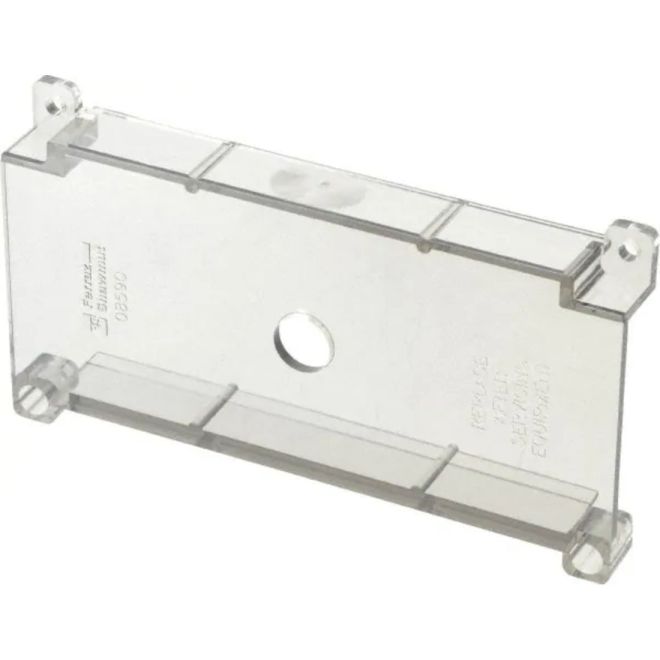

Mersen 08590 Polycarbonate Safety Covers P214465
SKU#:
35330
Mersen polycarbonate safety cover provides dead-front protection to 68000 and 69000 series large power distribution blocks. One 08590 cover is needed for each pole (1-pole block requires 1 cover, 3-pole requires 3 covers, etc.) Each cover has a test prod hole in the center for circuit checking and each is marked with the reminder "REPLACE AFTER SERVICING EQUIPMENT". To order, simply determine the total number of poles to be protected and specify the same number of Ferraz Shawmut 08590 safety covers. Mounting screws are supplied with cover. Recommended mounting screws for all 68000-69000 series: 1/4" (.250 diameter). Gould 08590 is comparable to Mersen MPDBC6869.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | 08590 |
| Manufacturer Alternate Number | P214465 |
| UPC | 782001756802 |
| Height (mm) | 20mm (0.79") |
| Width (mm) | 74mm |
| Depth (Length) (mm) | 137mm |
| Weight (lbs) | 0.12 |
| UOM | ea |
