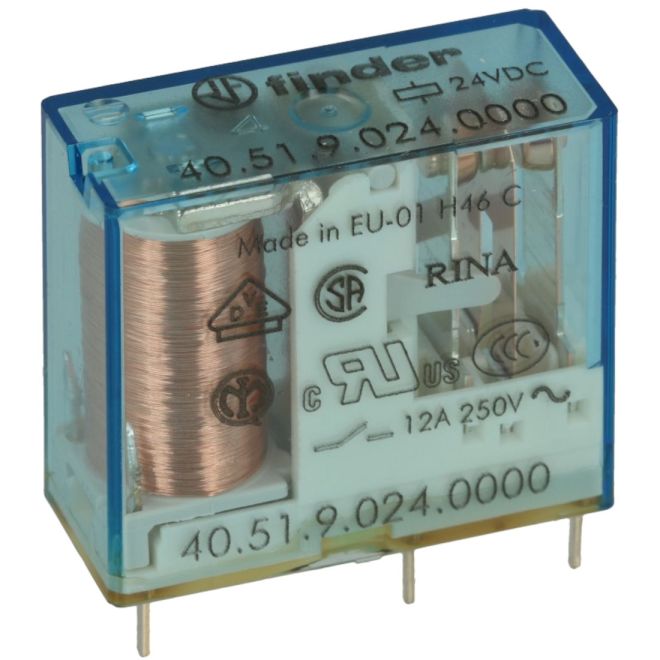

finder 40.51.9.024.0000 PCB/Plugin Miniature Relay
SKU#:
126242
Finder 40.51.9.024.0000 is a 10A 1-pole (1P) PCB/plug-in mount miniature relay with 24V DC coil. Compatible with 48 series relay interface modules and 95 series sockets. Finder 40.51.9.024.0000 has 1CO (SPDT - Single pole double throw) cadmium-free AgNi (Silver Nickel) contacts. 5mm contact pin pitch. Multi-function, suitable for a wide range of applications. Due to their versatility they are widely used in electronic circuit boards for household appliances (refrigerators, washing machines), electric gates, boiler control boards and similar.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 40.51.9.024.0000 |
| UPC | 8012823262857 |
| Coil Voltage | 24VDC |
| Contact Arrangement | SPDT (1 Form C) |
| Terminal Type | Plug-in |
| Max. Switching Voltage | 400 VAC |
| Max. Switching Current | 20 A |
| Rated Current | 10A |
| Max. Switching Power(Resistive) | 2,500VA |
| Max. Switching Power (Inductive) | 500VA |
| Minimum Load | 300mW |
| Operating Temperature | -40°C - +85°C |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 30.3mm |
| Width (mm) | 12.4mm |
| Depth (Length) (mm) | 29mm |
| Weight (lbs) | 0.04 |
| UOM | ea |
