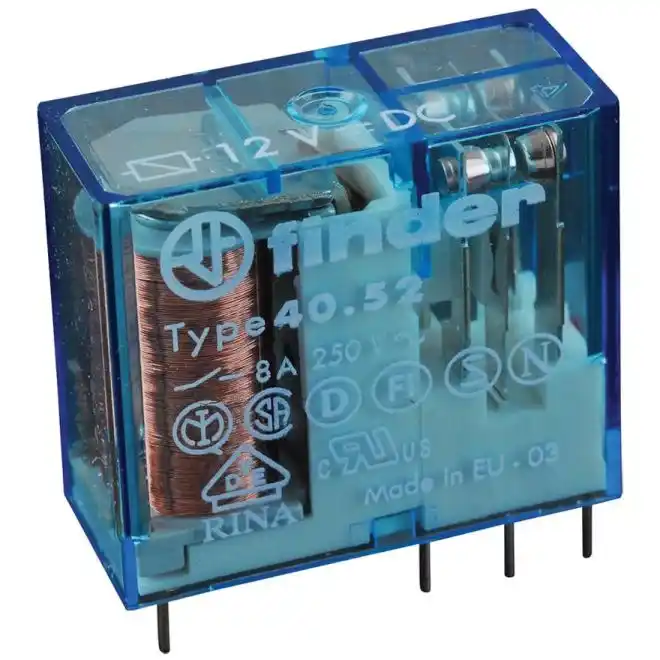

finder 40.52.9.012.0000 PCB/Plugin Miniature Relay
SKU#:
211614
Finder 40 series plug-in or PCB miniature EMR relays (electromechanical) are compatible with 48 series relay interface modules, as well as 95 series push-in sockets. Finder 40 series electromechanical relays offer high isolation of 6KV, 8mm creepage and clearance distances between coil and contacts. Due to their versatility they are widely used in electronic circuit boards for household appliances (refrigerators, washing machines), electric gates, boiler control boards and similar. Finder 40.52.9.012.0000 is comparable to TE Connectivity Schrack 6-1393234-7.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 40.52.9.012.0000 |
| UPC | 8012823263359 |
| Coil Voltage | 12VDC |
| Contact Arrangement | DPDT (2 Form C) |
| Terminal Type | Plug-in |
| Max. Switching Voltage | 400 VAC |
| Max. Switching Current | 15 A |
| Rated Current | 8A |
| Max. Switching Power(Resistive) | 2,000VA |
| Max. Switching Power (Inductive) | 400VA |
| Minimum Load | 300mW |
| Operating Temperature | -40°C - +85°C |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 30.3mm |
| Width (mm) | 12.4mm |
| Depth (Length) (mm) | 29mm |
| Weight (lbs) | 0.03 |
| UOM | ea |
