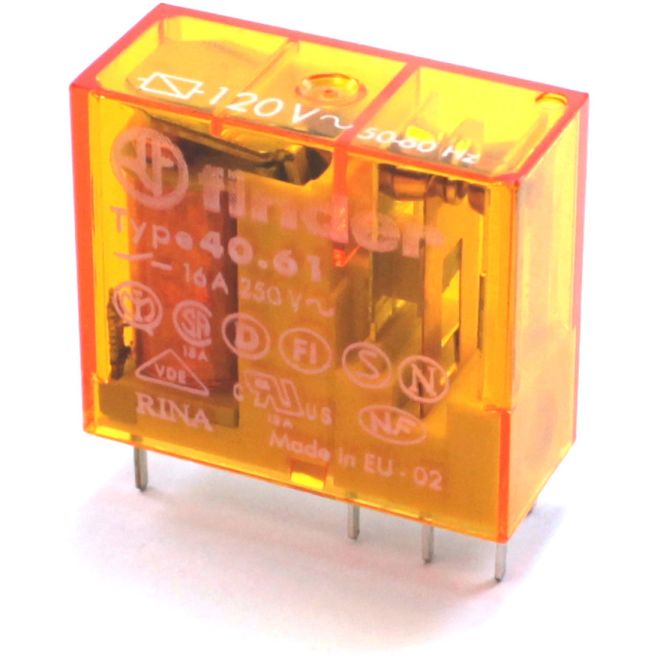

finder 40.61.8.120.0000 PCB/Plugin Miniature Relay
SKU#:
126257
Finder 40.61.8.120.0000 is a 16A 1-pole (1P) PCB/plug-in mount miniature relay with 120V AC coil. Compatible with 48 series relay interface modules and 95 series sockets. This relay has 1CO (SPDT - Single pole double throw) cadmium-free AgNi (Silver Nickel) contacts. 5mm contact pin pitch. Multi-function, suitable for a wide range of applications. Due to their versatility they are widely used in electronic circuit boards for household appliances (refrigerators, washing machines), electric gates, boiler control boards and similar. Finder 40.61.8.120.0000 is comparable to IDEC RH1B-UAC120V.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 40.61.8.120.0000 |
| UPC | 8012823263762 |
| Coil Voltage | 120VAC |
| Contact Arrangement | SPDT (1 Form C) |
| Terminal Type | Plug-in |
| Max. Switching Voltage | 400 VAC |
| Max. Switching Current | 30 A |
| Rated Current | 16A |
| Max. Switching Power(Resistive) | 4,000 VA |
| Max. Switching Power (Inductive) | 750VA |
| Minimum Load | 500mW |
| Operating Temperature | -40°C - +85°C |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 30.3mm |
| Width (mm) | 12.4mm |
| Depth (Length) (mm) | 29mm |
| Weight (lbs) | 0.04 |
| UOM | ea |
