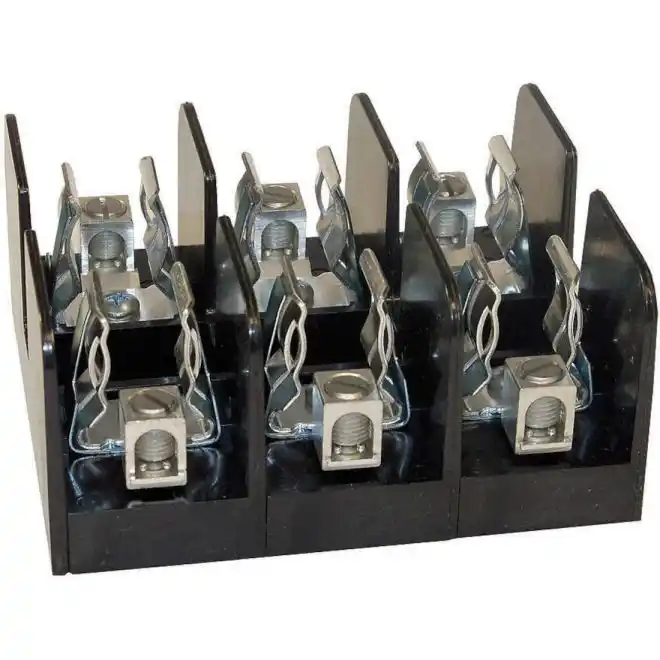

Mersen 60608T Ferraz Class T 600V Fuse Block
SKU#:
107515
Mersen Class T fuse blocks accommodate Class T fuses up to 600A. Insulators are either durable, glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. Mersen is the only manufacturer to offer Class T 60608T blocks with copper connectors. Ferraz Shawmut 60608T is comparable to Eaton Cooper Bussman 1DT33 T60060-3CR, Marathon SP 6T60A3B, Littelfuse LT60060-3CR.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | 60608T |
| Manufacturer Alternate Number | E201116 |
| UPC | 782001675608 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 600VDC |
| Rated Current | 60A |
| RoHS Compliant | Yes |
| Fuse Class | T |
| Mounting Type | Screw Mount / DIN Rail |
| Connection/Terminal Material | Tin-Plate |
| Terminal Type | Aluminum Box with Reinforced Clip |
| Body/Insulating Material | GFPC |
| Short Circuit Current Rating (SCCR) | 200A |
| Fuse Installation Method | Clip-in |
| Max Fuse Rating | 60A |
| Number of Poles | 3 |
| Type | Open Style |
| Height (mm) | 56mm (2.19") |
| Width (mm) | 117mm |
| Depth (Length) (mm) | 99mm |
| Weight (lbs) | 0.76 |
| UOM | ea |
