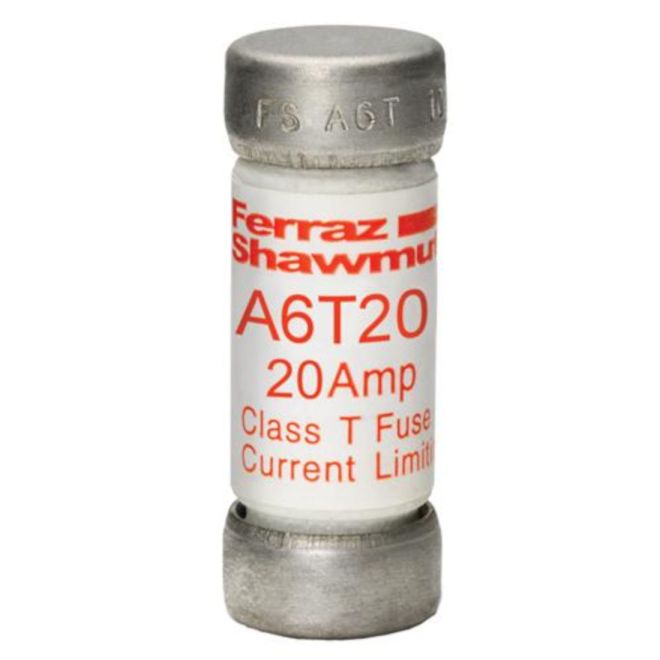

Mersen A6T20 Ferraz Fast Acting/Class T Power Fuse
SKU#:
109914
Mersen fast-acting A3T and A6T Class T fuses combine two highly desirable features - high current limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. A6T20 fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A6T20 |
| Manufacturer Alternate Number | P223113 |
| UPC | 782001891046 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 300VDC |
| Rated Current | 20A |
| Fuse Class | T |
| Speed/Characteristic | Fast-Acting |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 200kA |
| Connection/Terminal Material | Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | GMG |
| Height (mm) | 15mm |
| Width (mm) | 15mm |
| Depth (Length) (mm) | 38mm |
| Weight (lbs) | 0.03 |
| UOM | ea |
