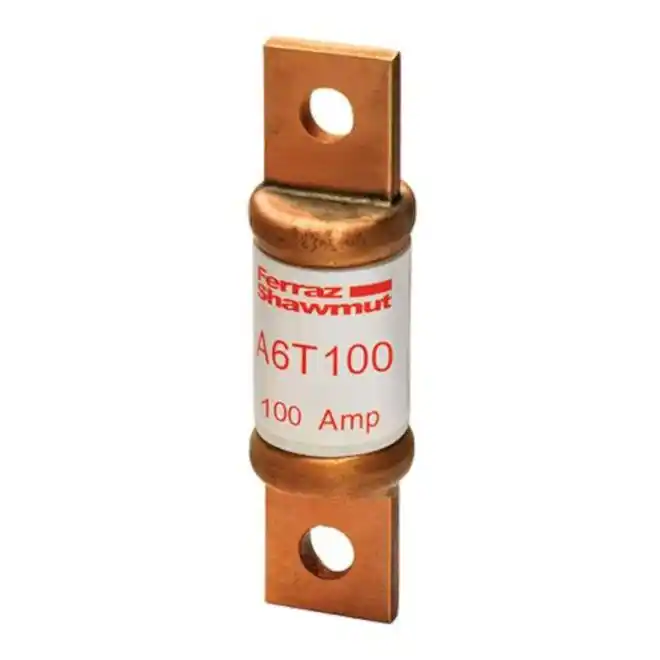

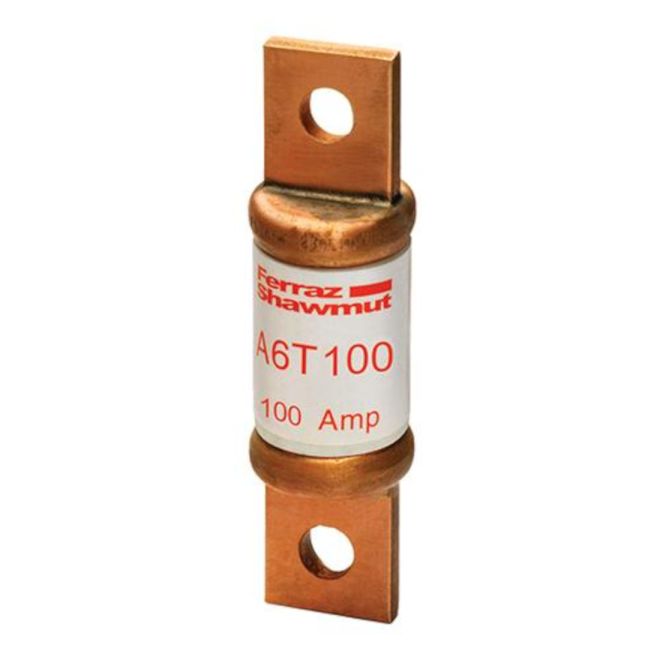

Mersen A6T100 Ferraz Fast Acting/Class T Fuse
SKU#:
109908
Mersen fast-acting A3T and A6T Class T fuses combine two highly desirable features - high current limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. A6T100 fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification. Ferraz Shawmut A6T100 is comparable to Eaton Cooper Bussmann JJS-100.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A6T100 |
| Manufacturer Alternate Number | W218864 |
| UPC | 782001891435 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 300VDC |
| Rated Current | 100A |
| Fuse Class | T |
| Speed/Characteristic | Fast-Acting |
| Mounting Type | Bolted |
| Short Circuit Current Rating (SCCR) | 200kA |
| Connection/Terminal Material | Copper |
| Terminal Type | Blade |
| Body/Insulating Material | GMG |
| Type | Fast Acting |
| Height (mm) | 21mm (0.83") |
| Width (mm) | 21mm |
| Depth (Length) (mm) | 75mm |
| Weight (lbs) | 0.11 |
| UOM | ea |
