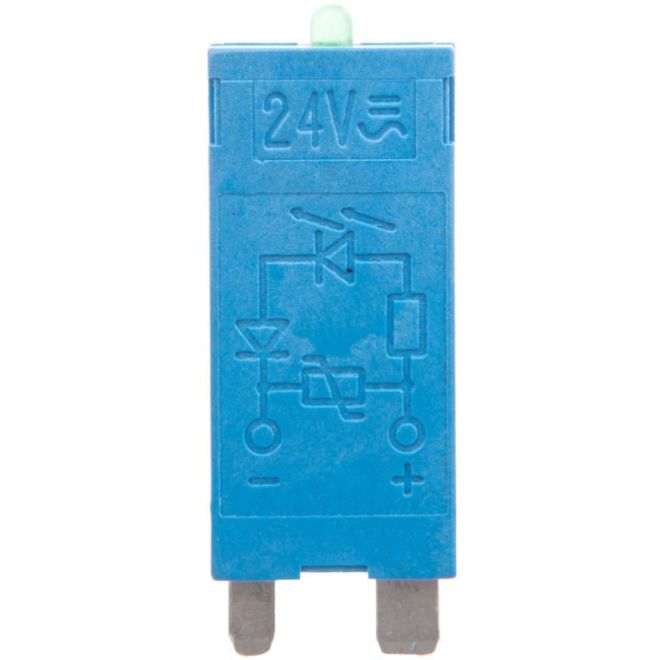

finder 99.01.0.024.98 Varistor Indicator Module
SKU#:
319873
Finder 99.01.0.024.98 is a green LED + varistor module for 99 series coil indication and EMC suppression modules. The reverse voltage peaks of the relay coil are limited by the varistor to approximately 2.5 times the nominal voltage of the supply. When using DC coils, it is essential that positive is connected to terminal A1. With Finder 99.01.0.024.98 the relay release time increases insignificantly.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 99.01.0.024.98 |
| UPC | 8012823104430 |
| Electrical Connection | Screw Terminals |
| Terminal Type | Screw Terminal |
| Color | Blue |
| Supply Voltage Range | 6VAC/6VDC - 24VAC/24VDC |
| Mounting Type | Panel, DIN Rail |
| Weight (lbs) | 0.01 |
| UOM | ea |
