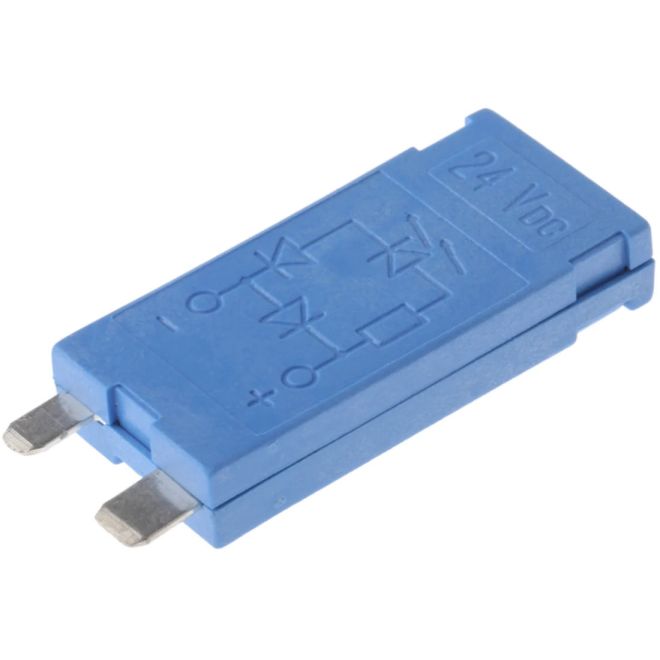

finder 99.01.9.024.99 LED Indicator Diode Module
SKU#:
126264
Finder 99.01.9.024.99 is a standard polarity Green LED + diode module. Recovery diode module + LED is used for DC only. The reverse voltage peaks of the coil are short circuited by the recovery diode (positive to terminal A1). The release time increases by an approximate factor of 3. If an increase of the release time is undesirable use a varistor or RC module. The LED indicator lights up when the coil is energized. The module provides back EMF diode protection, LED indication or both.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 99.01.9.024.99 |
| UPC | 8012823104591 |
| Electrical Connection | Screw Terminals |
| Terminal Type | Screw Terminal |
| Color | Blue |
| Supply Voltage Range | 6VDC - 24VDC |
| Mounting Type | Panel, DIN Rail |
| Weight (lbs) | 0.01 |
| UOM | ea |
