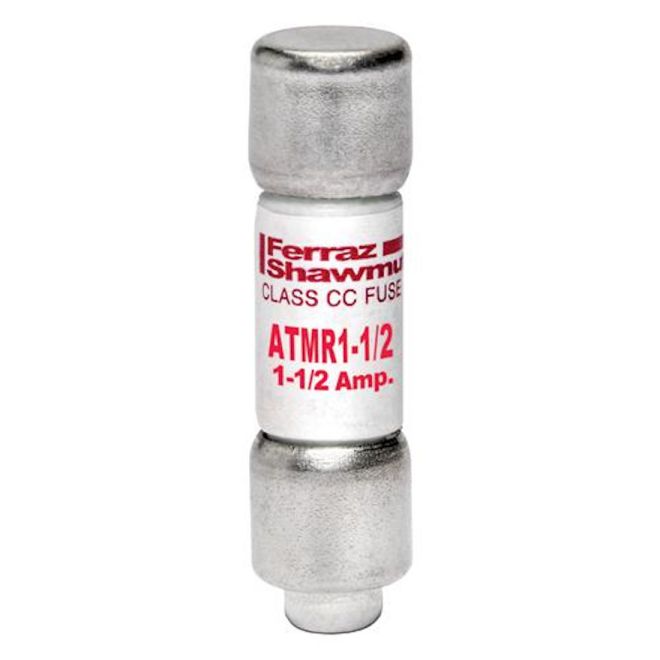

Mersen ATMR1-1/2 Ferraz Fast Acting/Class CC Fuse
SKU#:
110321
Mersen Amp-Trap® ATMR fuses, in the Class CC family, are the smallest dimension 600VAC/DC fuses suitable for branch circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. ATMR1-1/2 fast acting fuses give currentlimiting protection to general circuits. Ferraz Shawmut ATMR1-1/2 is comparable to Eaton Cooper Bussmann KTK-R-1-1/2, Littelfuse KLKR-1-1/2, KLKR01.5.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | ATMR1-1/2 |
| Manufacturer Alternate Number | K216761 |
| UPC | 782001903831 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 600VDC |
| Frequency | 50/60Hz |
| Rated Current | 1.5A |
| RoHS Compliant | Yes |
| Fuse Class | CC |
| Speed/Characteristic | Fast-Acting |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 200kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | GMG |
| Type | Fast Acting |
| Height (mm) | 11mm (0.43") |
| Width (mm) | 11mm |
| Depth (Length) (mm) | 39mm |
| Weight (lbs) | 0.02 |
| UOM | ea |
