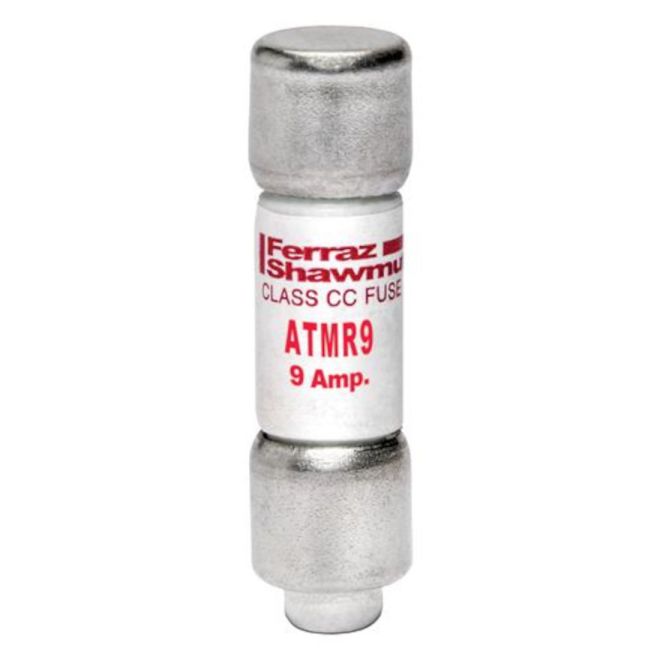

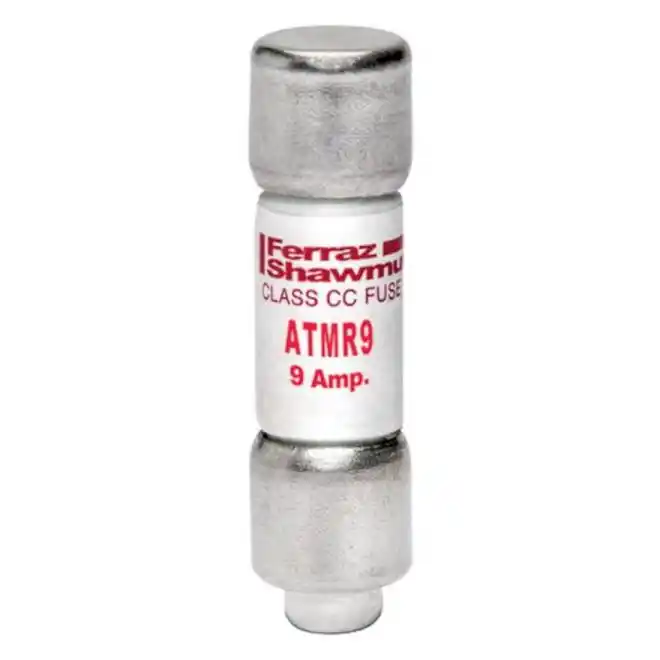

Mersen ATMR9 Ferraz Fast Acting/Class CC Fuse
SKU#:
27387
Mersen Amp-Trap® ATMR fuses, in the Class CC family, are the smallest dimension 600VAC/DC fuses suitable for branch circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. ATMR9 fast acting fuses give currentlimiting protection to general circuits. Ferraz Shawmut ATMR9 is comparable to Eaton Cooper Bussmann KTK-R-9, Littelfuse KLKR-9, KLKR-009.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | ATMR9 |
| Manufacturer Alternate Number | P218306 |
| UPC | 782001904524 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 600VDC |
| Frequency | 50/60Hz |
| Rated Current | 9A |
| RoHS Compliant | Yes |
| Fuse Class | CC |
| Speed/Characteristic | Fast-Acting |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 200kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | GMG |
| Type | Fast Acting |
| Height (mm) | 11mm (0.43") |
| Width (mm) | 11mm |
| Depth (Length) (mm) | 39mm |
| Weight (lbs) | 0.02 |
| UOM | ea |
