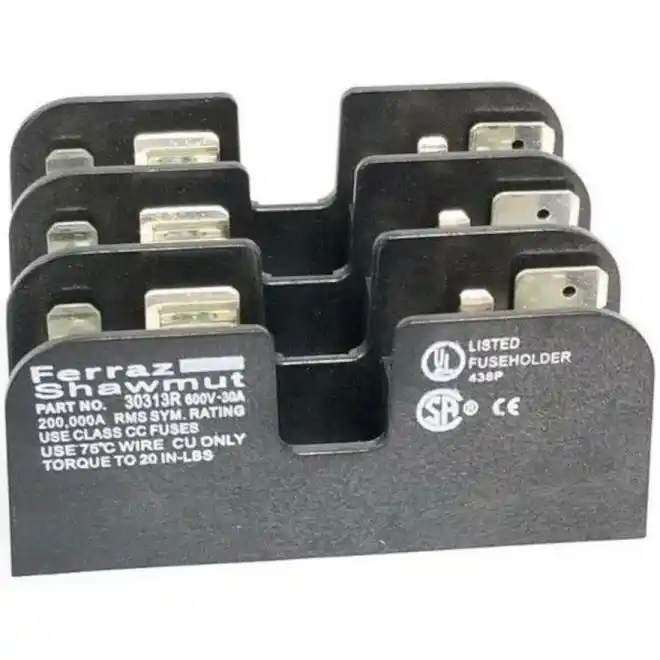

Mersen 30313R Ferraz Class CC 600V Fuse Block
SKU#:
27880
Mersen midget fuse blocks accommodate all 30 ampere 1-1/2" x 13/32" midget fuses. Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box, screw, or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. 30313R fuse blocks feature a unique adder block which can be snapped onto 1-pole, 2-pole or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy. Ferraz Shawmut 30313R is comparable to Rheem 4000029, Marathon 6CC30A3S 6CC30A3SQ, Eaton Bussmann BCA6033SQ BC6033S BC6033SQ BCA6033SQ, Littelfuse L60030C-3S L60030C-3SQ, Connectron MR633-66.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | 30313R |
| Manufacturer Alternate Number | M213428 |
| UPC | 782001758387 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 600VDC |
| Rated Current | 30A |
| RoHS Compliant | Yes |
| Fuse Class | CC |
| Mounting Type | Screw Mount / DIN Rail |
| Connection/Terminal Material | Tin-Plate |
| Terminal Type | Copper Screw with Reinforced Clip |
| Body/Insulating Material | GFPC |
| Short Circuit Current Rating (SCCR) | 200A |
| Fuse Installation Method | Clip-in |
| Max Fuse Rating | 30A |
| Number of Poles | 3 |
| Type | Open Style |
| Height (mm) | 33mm (1.3") |
| Width (mm) | 41mm |
| Depth (Length) (mm) | 78mm |
| Weight (lbs) | 0.35 |
| UOM | ea |
