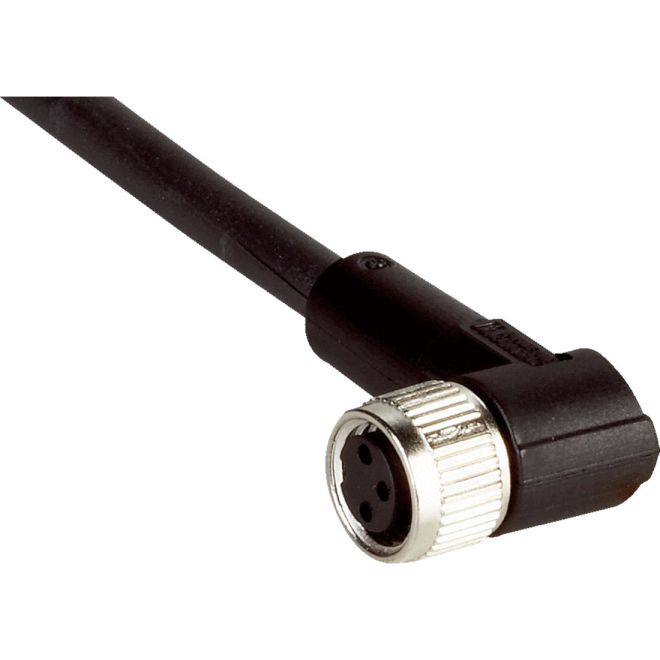

SICK DOL-0803-W05MC 6025892 Female 5m M8 Cables
SKU#:
355977
As the connectors are used in cold stores and washdown zones, they must be highly resistant to chemical, thermal, and mechanical contamination. Complying with hygiene require-ments is the highest priority. Using a suitable mounting tool ensures a watertight connection between the sensor and cable. The DOL-0803-W05MC 6025892 connectors for this area feature IP enclosure ratings IP69K for protection from the effects of high pressure cleaning and steam cleaning. The Ecolab certification also indicates that the cables for this zone are particularly resistant to aggressive acidic and alkaline cleaning agents. In addition, these cables have coupling nuts made of stainless steel (V4A). SICK DOL-0803-W05MC is comparable to SICK Replacement Type: YG8U13-050UA1XLEAX Part number: 2095586.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 6025892 |
| Manufacturer Alternate Number | DOL-0803-W05MC |
| Cable Material | PUR, Halogen-Free |
| Size | M8 |
| Socket or Plug | Female Socket |
| Type | M8 Cordset with Female Socket & Flying Leads |
| Wire Size | 4.4mm |
| Number of Pins/Wires | 3 |
| Connector Shape | Angled |
| Cable Length | 5m |
| Color | Black |
| IP Rating | IP65, IP67, IP68 |
| Rated Current | 4 A |
| Height (mm) | 4.4mm |
| Width (mm) | 4.4mm |
| Depth (Length) (mm) | 5000mm |
| Weight (lbs) | 0.27 |
| UOM | ea |
