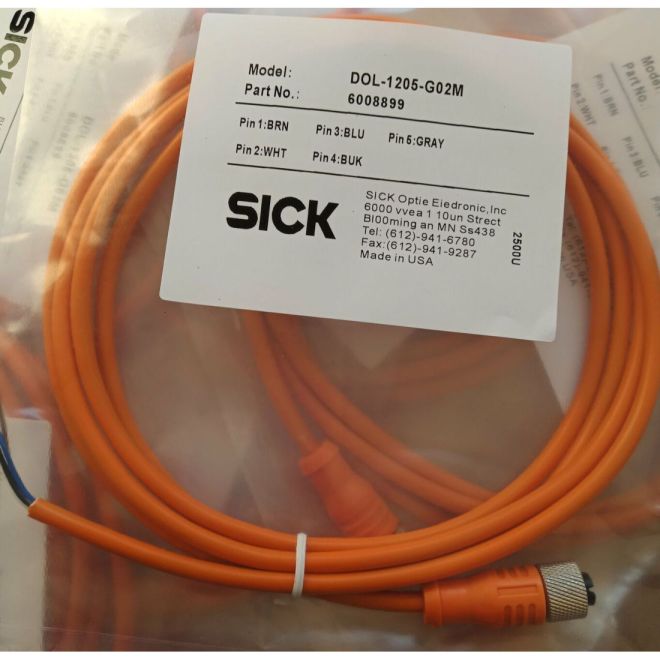

SICK DOL-1205-G02M 6008899 Female M12 2m Cables
SKU#:
126097
As the connectors are used in cold stores and washdown zones, they must be highly resistant to chemical, thermal, and mechanical contamination. Complying with hygiene require-ments is the highest priority. Using a suitable mounting tool ensures a watertight connection between the sensor and cable. The DOL-1205-G02M 6008899 connectors for this area feature IP enclosure ratings IP69K for protection from the effects of high pressure cleaning and steam cleaning. The Ecolab certification also indicates that the cables for this zone are particularly resistant to aggressive acidic and alkaline cleaning agents. In addition, these cables have coupling nuts made of stainless steel (V4A). SICK DOL-1205-G02M is comparable to SICK Replacement Type: YF2A15-020VB5XLEAX Part number: 2096239.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 6008899 |
| Manufacturer Alternate Number | DOL-1205-G02M |
| Cable Material | PVC |
| Size | M12 |
| Socket or Plug | Female Socket |
| Type | M12 Cordset with Female Socket & Flying Leads |
| Wire Size | 5.7mm |
| Number of Pins/Wires | 5 |
| Connector Shape | Straight |
| Cable Length | 2m |
| Color | Orange |
| IP Rating | IP67 |
| Rated Current | 4 A |
| Height (mm) | 5.7mm |
| Width (mm) | 5.7mm |
| Depth (Length) (mm) | 2000mm (79") |
| Weight (lbs) | 0.23 |
| UOM | ea |
