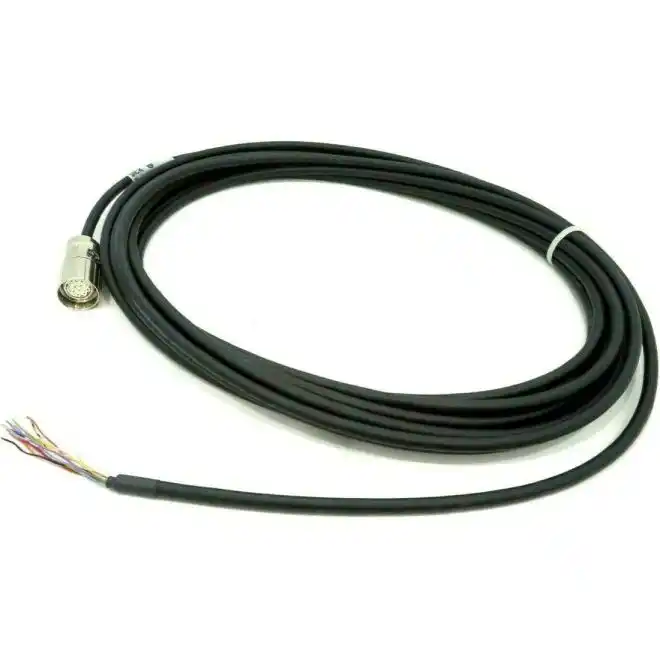

SICK DOL-2312-G10MMA1 2029203 Female M23 10m Cable
SKU#:
360136
As the connectors are used in cold stores and washdown zones, they must be highly resistant to chemical, thermal, and mechanical contamination. Complying with hygiene require-ments is the highest priority. Using a suitable mounting tool ensures a watertight connection between the sensor and cable. The DOL-2312-G10MMA1 2029203 connectors for this area feature IP enclosure ratings IP69K for protection from the effects of high pressure cleaning and steam cleaning. The Ecolab certification also indicates that the cables for this zone are particularly resistant to aggressive acidic and alkaline cleaning agents. In addition, these cables have coupling nuts made of stainless steel (V4A).
| Brand | SICK |
|---|---|
| Manufacturer Part Number | DOL-2312-G10MMA1 |
| Manufacturer Alternate Number | 2029203 |
| Cable Material | PUR, Halogen-Free |
| Size | M23 |
| Socket or Plug | Female Socket |
| Type | M23 Cordset with Female Socket & Flying Leads |
| Wire Size | 7.8mm |
| Number of Pins/Wires | 12 |
| Connector Shape | Straight |
| Cable Length | 10m |
| Color | Black |
| IP Rating | IP66, IP67 |
| Rated Current | 7A |
| Height (mm) | 7.8mm |
| Width (mm) | 7.8mm |
| Depth (Length) (mm) | 10m |
| Weight (lbs) | 2.11 |
| UOM | ea |
