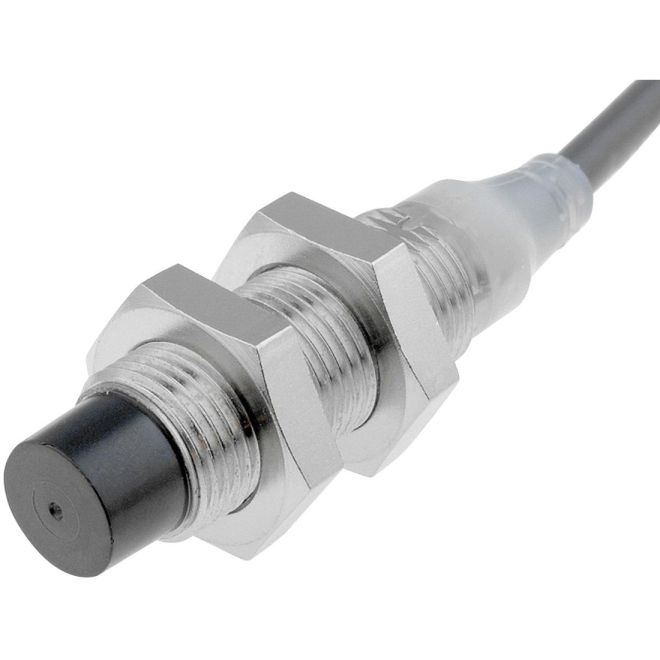

Omron E2A-M12KN08-WP-B1 M12 Proximity Sensor
SKU#:
313512
Omron E2A ensures a sensing distance approximately 1.5 to 2 times larger than that of any conventional sensor. Full range of standard sizes (M8, M12, M18 and M30; both long and short barrels) are available. Modular construction simplifies customization. Problems such as the collision of workpieces are eliminated with E2A-M12KN08-WP-B1 2M. Omron E2A-M12KN08-WP-B1 2M is comparable to Omron E2E-X5MF1, TL-X5MB1-GE.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E2A-M12KN08-WP-B1 2M |
| Manufacturer Alternate Number | E2AM12KN08WPB12M |
| UPC | 4536854917745 |
| Size | M12 |
| Body Type | Threaded Cylindrical |
| Type | Short Body |
| Supply Voltage Range | 12VDC - 24VDC |
| Sensing Range | 8mm |
| Shielded | No |
| Electrical Connection | PVC Cable |
| Cable Length | 2m |
| Output Type | PNP |
| Operation | Normally Open |
| Threaded Length | 27mm |
| Overall Length | 50.3mm |
| Mounting Type | Bracket with 12mm mounting hole or M12x1 threaded hole |
| IP Rating | IP67 |
| Height (mm) | 17mm |
| Width (mm) | 17mm |
| Depth (Length) (mm) | 50.3mm |
| Weight (lbs) | 0.19 |
| UOM | ea |
