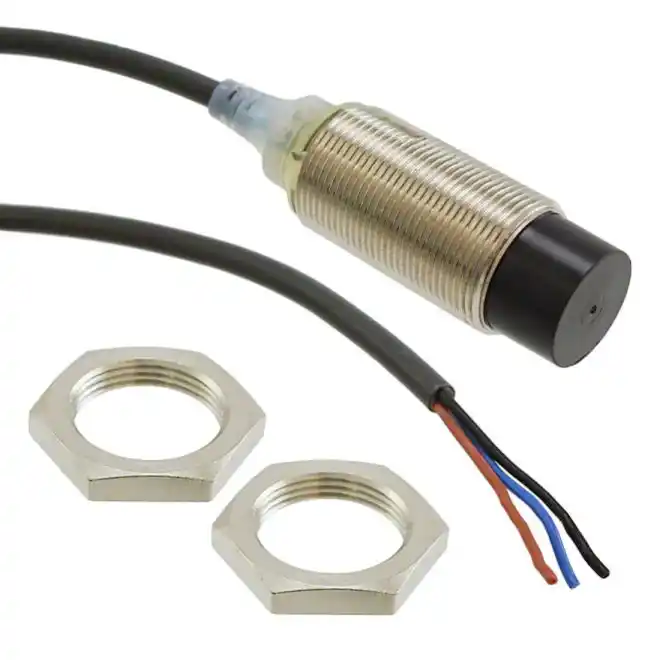

Omron E2A-M18KN16-WP-C1 M18 Proximity Sensor
SKU#:
312725
Omron E2A ensures a sensing distance approximately 1.5 to 2 times larger than that of any conventional sensor. Full range of standard sizes (M8, M12, M18 and M30; both long and short barrels) are available. Modular construction simplifies customization. Problems such as the collision of workpieces are eliminated with E2A-M18KN16-WP-C1 2M. Omron E2A-M18KN16-WP-C1 2M is comparable to Honeywell 992AB18AN-A2, Omron E2E-X10ME1.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E2A-M18KN16-WP-C1 2M |
| Manufacturer Alternate Number | E2AM18KN16WPC12M |
| UPC | 4536854918100 |
| Size | M18 |
| Body Type | Threaded Cylindrical |
| Type | Short Body |
| Supply Voltage Range | 12VDC - 24VDC |
| Sensing Range | 16mm |
| Shielded | No |
| Electrical Connection | PVC Cable |
| Cable Length | 2m |
| Output Type | NPN |
| Operation | Normally Open |
| Threaded Length | 29mm |
| Overall Length | 59mm |
| Mounting Type | Bracket with 18mm mounting hole or M18x1 threaded hole |
| IP Rating | IP67 |
| Height (mm) | 24mm |
| Width (mm) | 24mm |
| Depth (Length) (mm) | 59.5mm |
| Weight (lbs) | 0.35 |
| UOM | ea |
