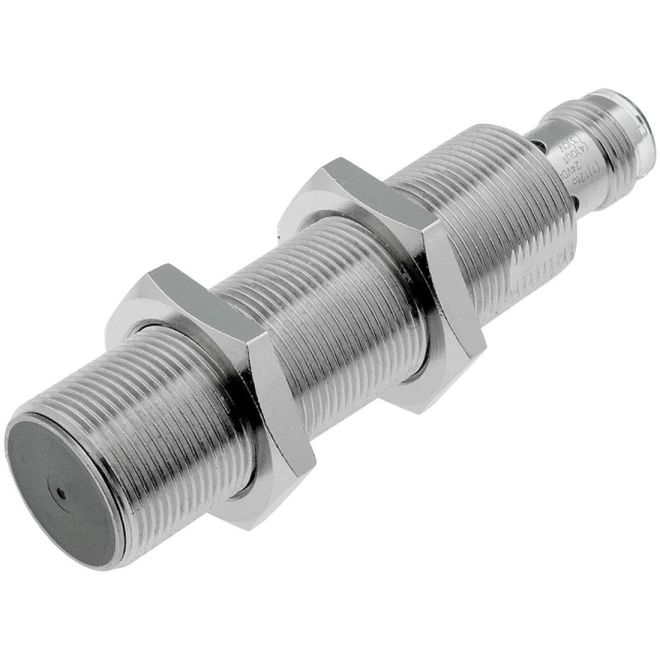

Omron E2A-M18LS08-M1-B1 M18 Proximity Sensor
SKU#:
313118
Omron E2A ensures a sensing distance approximately 1.5 to 2 times larger than that of any conventional sensor. Full range of standard sizes (M8, M12, M18 and M30; both long and short barrels) are available. Modular construction simplifies customization. Problems such as the collision of workpieces are eliminated with E2A-M18LS08-M1-B1. Omron E2A-M18LS08-M1-B1 is comparable to Allen Bradley 872CD5NP18D4C.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E2A-M18LS08-M1-B1 |
| Manufacturer Alternate Number | E2AM18LS08M1B1 |
| UPC | 4536854950759 |
| Size | M18 |
| Body Type | Threaded Cylindrical |
| Type | Long Body |
| Supply Voltage Range | 12VDC - 24VDC |
| Sensing Range | 8mm |
| Shielded | Yes |
| Electrical Connection | M12 4-pin Connector |
| Output Type | PNP |
| Operation | Normally Open |
| Threaded Length | 61mm |
| Overall Length | 75mm |
| Mounting Type | Bracket with 18mm mounting hole or M18x1 threaded hole |
| IP Rating | IP67 |
| Height (mm) | 24mm |
| Width (mm) | 24mm |
| Depth (Length) (mm) | 75mm |
| Weight (lbs) | 0.15 |
| UOM | ea |
