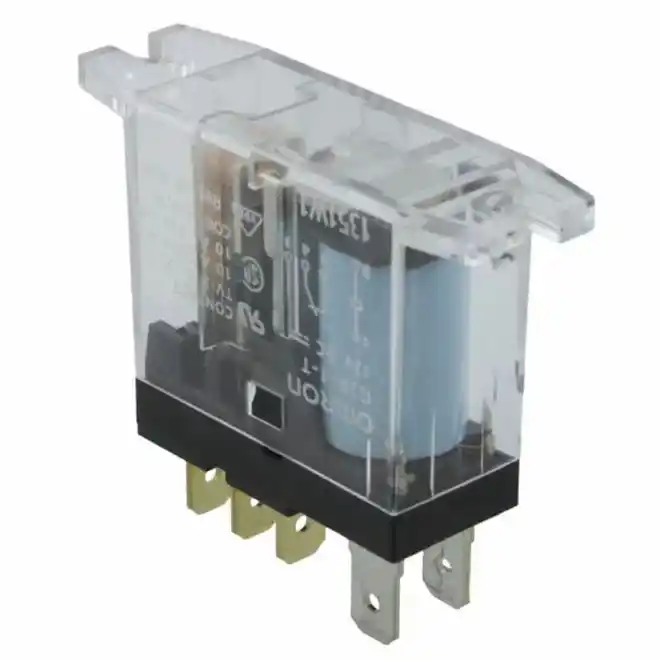

Omron G2R-1-T DC12 12VDC PCB Power Relay
SKU#:
1056
Omron general purpose power relays of single-pole 10 A and double-pole 5 A. G2R-1-T-DC12 has a safety-oriented design with dielectric strength of 5,000 V between coil and contacts, and surge resistance of 10,000 V. AC and DC types are both available for operational coils.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G2R-1-T-DC12 |
| Manufacturer Alternate Number | G2R1TDC12 |
| UPC | 4547648031905 |
| Coil Voltage | 12VDC |
| Contact Arrangement | 1 Form C (SPDT-N/O, N/C) |
| Terminal Type | Quick Connect |
| Mounting Type | Solder |
| Max. Switching Voltage | 380 VAC, 125 VDC |
| Max. Switching Current | 10 A |
| Rated Current | 7.5A at 250 VAC, 5A at 30 VDC |
| Rated Load (Resistive) | 10 A at 250 VAC, 10 A at 30 VDC |
| Minimum Load | 100 mA at 5 VDC |
| Operating Temperature | -40°C - +70°C |
| Power Consumption | Approx. 0.53 W |
| RoHS Compliant | Yes |
| Duty Cycles | 100,000 |
| Height (mm) | 38mm |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 14mm |
| Weight (lbs) | 0.04 |
| UOM | ea |
