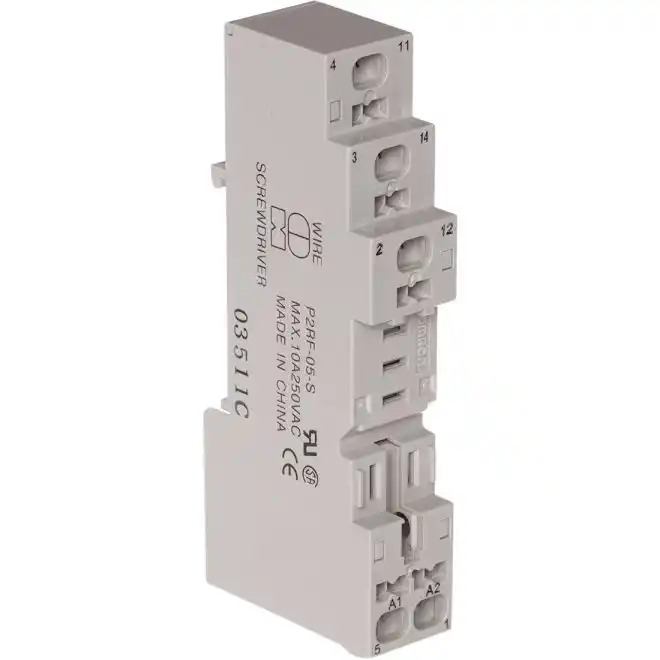

Omron P2RF-05-S Screwless Clamp Terminal Socket
SKU#:
266810
New Omron screwless terminal sockets added for MY and G2R relays. Simplified wiring without tightening screws. Two wires can be independently wired for each terminal. Coil terminals and contact terminals are completely separated in an organized wiring layout. P2RF-05-S sockets, release levers and labels are available (sold separately). Omron P2RF-05-S is comparable to IDEC SH1B-05.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | P2RF-05-S |
| Manufacturer Alternate Number | P2RF05S |
| UPC | 4536854883453 |
| Contact Arrangement | SPDT |
| Number of Positions | 5 |
| Electrical Connection | 5 Positions Blade |
| Terminal Type | Spring Terminal |
| Operating Temperature | -40°C - +70°C |
| Rated Current | 10A |
| Supply Voltage Range | 250VAC |
| Mounting Type | DIN Rail |
| Height (mm) | 91.8mm |
| Width (mm) | 18mm |
| Depth (Length) (mm) | 37.9mm |
| Weight (lbs) | 0.08 |
| UOM | ea |
