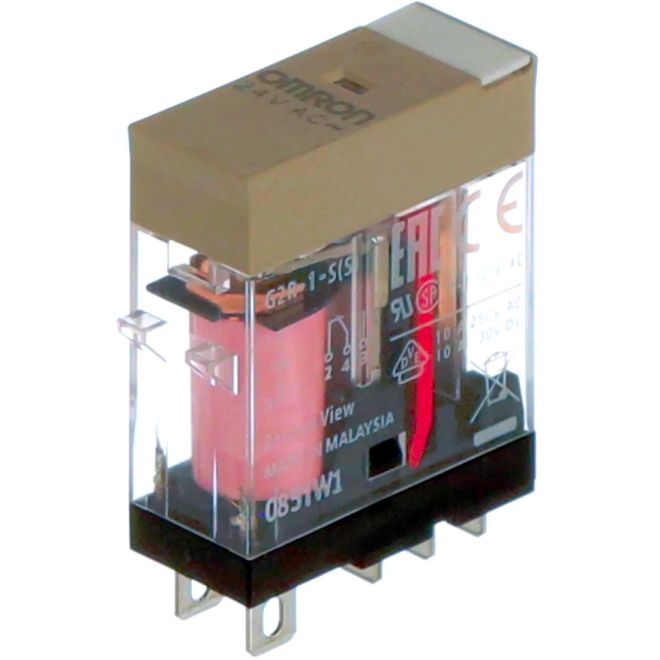

Omron G2R-1-S AC24(S) 24VAC General Purpose Relay
SKU#:
1040
Omron G2RS relay sets new standards in feature design and reliability. These slimline interface relays give enhanced features and flexibility for more user-friendly installation, commissioning and operation. G2RS comes with standard nameplate and mechanical indicator. G2R-1-S AC24(S) slimline relay with enhanced features adds flexibility and durability to applications. Omron G2R-1-S AC24(S) is comparable to Allen-Bradley 700-HK36A24, IDEC RH1B-UAC24V.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G2R-1-S AC24(S) |
| Manufacturer Alternate Number | G2R1SAC24S |
| UPC | 4536854936432 |
| Coil Voltage | 24VAC |
| Contact Arrangement | 1 Form C (SPDT-N/O, N/C) |
| Terminal Type | Plug-in |
| Mounting Type | Base/Socket |
| Indicator | Mechanical |
| Max. Switching Voltage | 440 VAC, 125 VDC |
| Max. Switching Current | 10 A |
| Rated Current | 7.5A at 250 VAC, 5A at 30 VDC |
| Rated Load (Resistive) | 10 A at 250 VAC, 10 A at 30 VDC |
| Max. Switching Power(Resistive) | 2,500 VA, 300 W |
| Max. Switching Power (Inductive) | 1,875 VA, 150 W |
| Minimum Load | 100 mA at 5 VDC |
| Operating Temperature | -40°C - +70°C |
| Power Consumption | Approx. 0.9 VA (60 Hz) |
| RoHS Compliant | Yes |
| Duty Cycles | 100,000 |
| Height (mm) | 35.5mm |
| Width (mm) | 29mm |
| Depth (Length) (mm) | 13mm |
| Weight (lbs) | 0.04 |
| UOM | ea |
