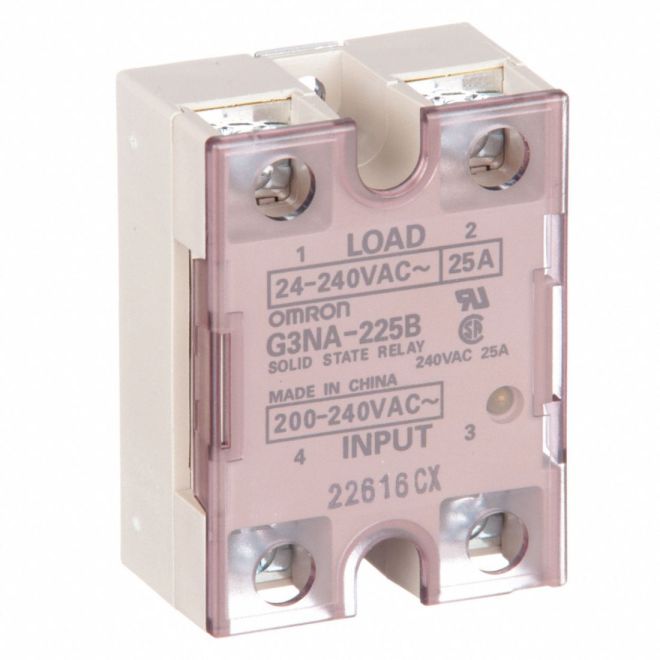

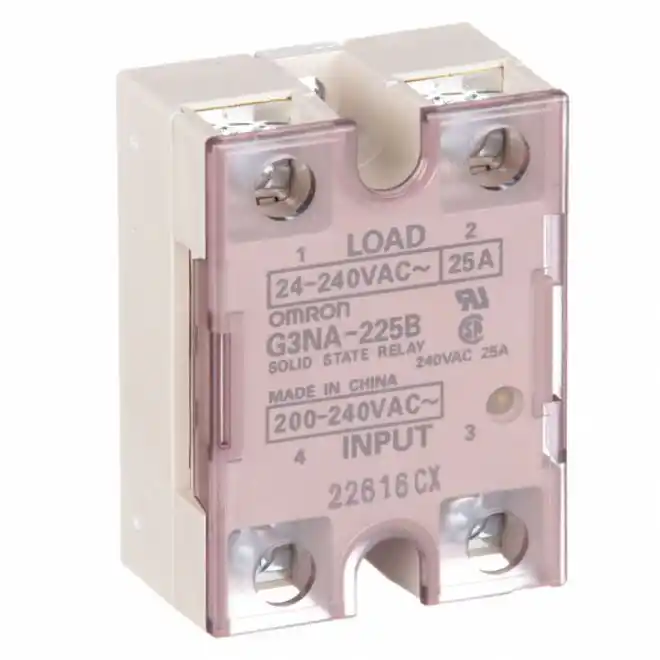

Omron G3NA-225B AC200-240 AC Output 25A SSR
SKU#:
1279
Omron's G3NA and G3NE SSR's are great fits for commercial inline toasters and food heating applications. G3NA-225B AC200-240 SSRs are clearly a good fit for switching any large current/resistive loads that cycle on/off regularly and for similar equipment that is on for extended periods. If heat build-up and high ambient temperature are issues, models are available with optional heat sinks. Take advantage of Solid State Relay's (SSR's) long service life and fast response times for your process control applications. Omron G3NA-225B AC200-240 is comparable to Schneider Magnecraft 6225AXXSZS-AC90 W6225ASX-1, Potter & Brumfield SSR240A25, IDEC RSSAN-25A, Crydom A1225, Crouzet 84134011, Carlo Gavazzi RA2425HA06, Continental S505-OSJ625-009, Opto 22 240A25, Omron G3NA-225B-UTU AC200-240, AMETEK NCC SNC-R2025-505.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G3NA-225B AC200-240 |
| Manufacturer Alternate Number | G3NA225BAC200240 |
| UPC | 4548583569669 |
| Supply Voltage Range | 100VAC - 240VAC |
| Rated Current | 25A |
| Max Operating Input Voltage | 150VAC - 264VAC |
| Indicator | LED |
| Input Impedance Range | 36kΩ ±20% - 72kΩ ±20% |
| Max Rated Load Voltage | 120VAC - 240VAC |
| Max Applicable Load Voltage | 132VAC - 264VAC |
| Max Load Current | AC: 17.4A - AC: 35A |
| RoHS Compliant | Yes |
| Operating Temperature | -30°C - +80°C |
| Inrush Current | 220A (60Hz, 1 Cycle) |
| Mounting Type | Panel |
| Terminal Type | Screw Terminal |
| Contact Arrangement | 1 Form A (SPST-N/O) |
| Zero Cross Function | Yes |
| Height (mm) | 58mm (2.28") |
| Width (mm) | 43mm |
| Depth (Length) (mm) | 30mm |
| Weight (lbs) | 0.13 |
| UOM | ea |
