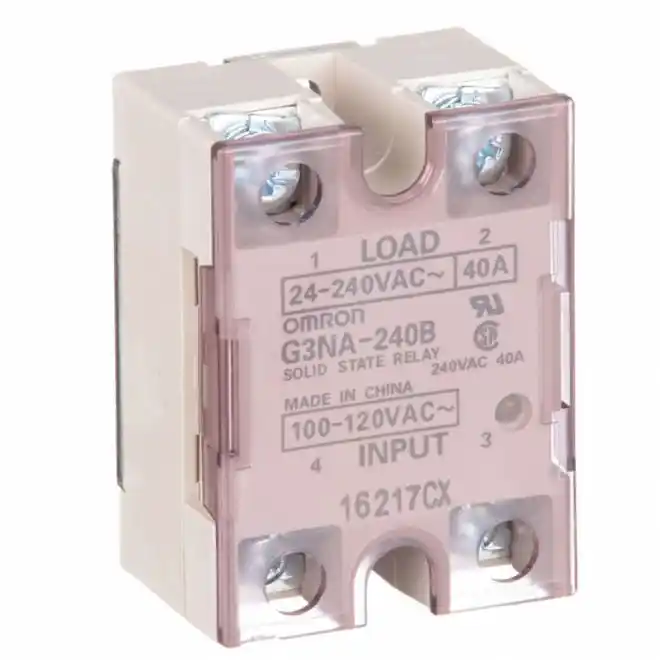

Omron G3NA-240B AC100-120 AC Output 40A SSR
SKU#:
1281
Omron's G3NA and G3NE SSR's are great fits for commercial inline toasters and food heating applications. G3NA-240B AC100-120 SSRs are clearly a good fit for switching any large current/resistive loads that cycle on/off regularly and for similar equipment that is on for extended periods. If heat build-up and high ambient temperature are issues, models are available with optional heat sinks. Take advantage of Solid State Relay's (SSR's) long service life and fast response times for your process control applications. Omron G3NA-240B AC100-120 is comparable to Omron G3NA-240B-UTU AC100-120, NCC SNCR2040-505.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G3NA-240B AC100-120 |
| Manufacturer Alternate Number | G3NA240BAC100120 |
| UPC | 4548583569676 |
| Supply Voltage Range | 100VAC - 240VAC |
| Rated Current | 40A |
| Max Operating Input Voltage | 75VAC - 132VAC |
| Indicator | LED |
| Input Impedance Range | 36kΩ ±20% - 72kΩ ±20% |
| Max Rated Load Voltage | 120VAC - 240VAC |
| Max Applicable Load Voltage | 132VAC - 264VAC |
| Max Load Current | AC: 40A - AC: 150A |
| RoHS Compliant | Yes |
| Operating Temperature | -30°C - +80°C |
| Inrush Current | 440A (60Hz, 1 Cycle) |
| Mounting Type | Panel |
| Terminal Type | Screw Terminal |
| Contact Arrangement | 1 Form A (SPST-N/O) |
| Zero Cross Function | Yes |
| Height (mm) | 58mm (2.28") |
| Width (mm) | 43mm |
| Depth (Length) (mm) | 30mm |
| Weight (lbs) | 0.15 |
| UOM | ea |
