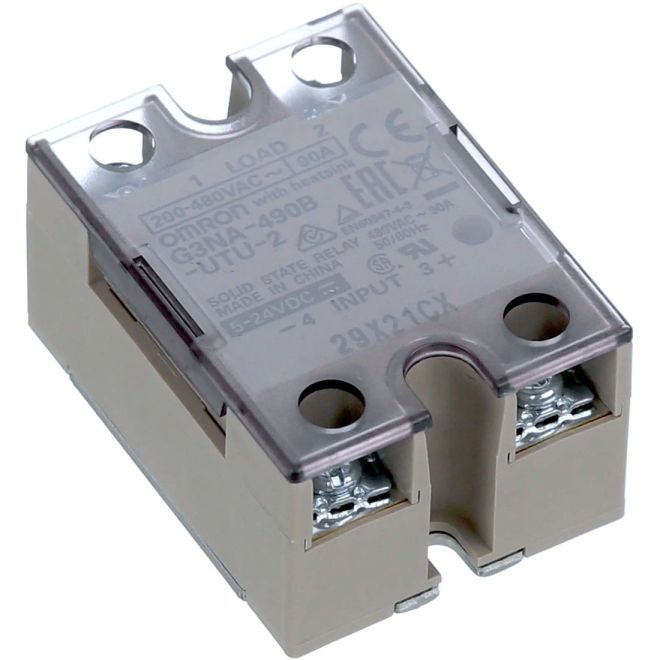

Omron G3NA-490B-UTU-2 DC5-24 AC Output SSR
SKU#:
586265
Omron's G3NA and G3NE SSR's are great fits for commercial inline toasters and food heating applications. G3NA-490B-UTU-2 DC5-24 SSRs are clearly a good fit for switching any large current/resistive loads that cycle on/off regularly and for similar equipment that is on for extended periods. If heat build-up and high ambient temperature are issues, models are available with optional heat sinks. Take advantage of Solid State Relay's (SSR's) long service life and fast response times for your process control applications.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G3NA-490B-UTU-2 DC5-24 |
| Manufacturer Alternate Number | G3NA490BUTU2DC524 |
| UPC | 4548583045507 |
| Supply Voltage Range | 4VDC - 30VDC |
| Rated Current | 90A |
| Max Operating Input Voltage | 4VDC - 32VDC |
| Indicator | LED |
| Input Impedance Range | 4.5mA max. - 10mA max. |
| Max Rated Load Voltage | 264VAC - 600VAC |
| Max Applicable Load Voltage | 440VAC - 660VAC |
| Max Load Current | AC: 40A - AC: 150A |
| RoHS Compliant | Yes |
| Operating Temperature | -30°C - +80°C |
| Inrush Current | 1,000A (60Hz, 1 Cycle) |
| Mounting Type | Panel |
| Terminal Type | Screw Terminal |
| Contact Arrangement | 1 Form A (SPST-N/O) |
| Zero Cross Function | Yes |
| Height (mm) | 58mm (2.28") |
| Width (mm) | 43mm |
| Depth (Length) (mm) | 30mm |
| Weight (lbs) | 0.26 |
| UOM | ea |
