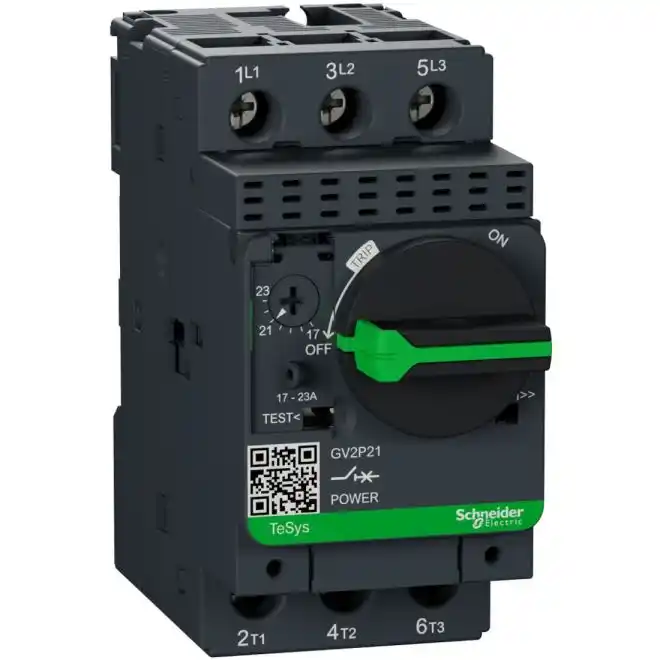

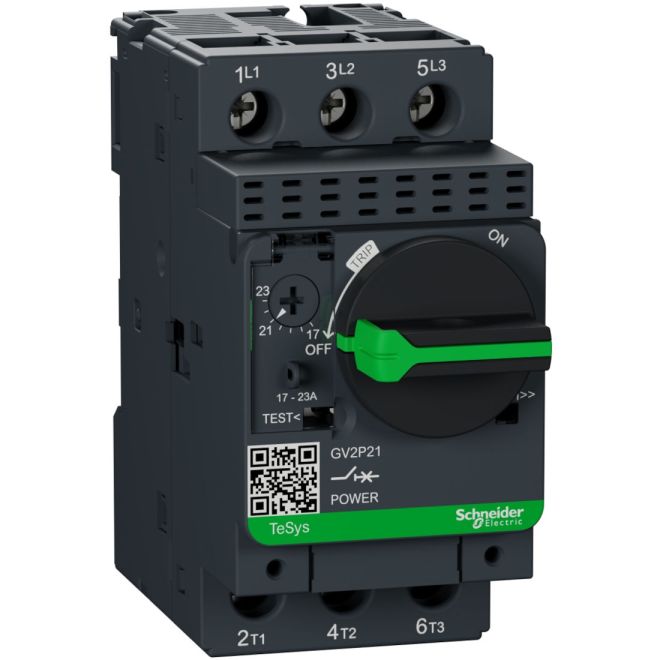

Square D GV2P21 TeSys GV2 Manual Starter 17A - 23A
SKU#:
75906
Simplify design, panel space and installation with Square D TeSys™ high SCCR solution that use only two components that make up an entire branch circuit up to 520 amps. These two-component solutions are UL compliant using either a Telemecanique Type F combination motor controller rating or a UL 489 rating. Schneider Electric GV2P21 TeSys Deca GV2 manual starter and protector thermal magnetic circuit breaker rotary handle 17A to 23A screw clamp terminals. Telemecanique GV2-P21 is comparable to ABB MS 325.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | GV2P21 |
| Manufacturer Alternate Number | GV2-P21 |
| UPC | 785901832966 |
| Rated Voltage | 690VAC |
| Rated Current | 23A |
| Electrical Connection | Screw Terminals |
| IP Rating | IP20 |
| Operating Temperature | -20°C - +60°C |
| Number of Poles | 3 |
| Type | Circuit Breaker |
| Duty Cycles | 100,000 |
| Mounting Type | DIN Rail |
| Height (mm) | 89mm |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 97mm |
| Weight (lbs) | 0.75 |
| UOM | ea |
