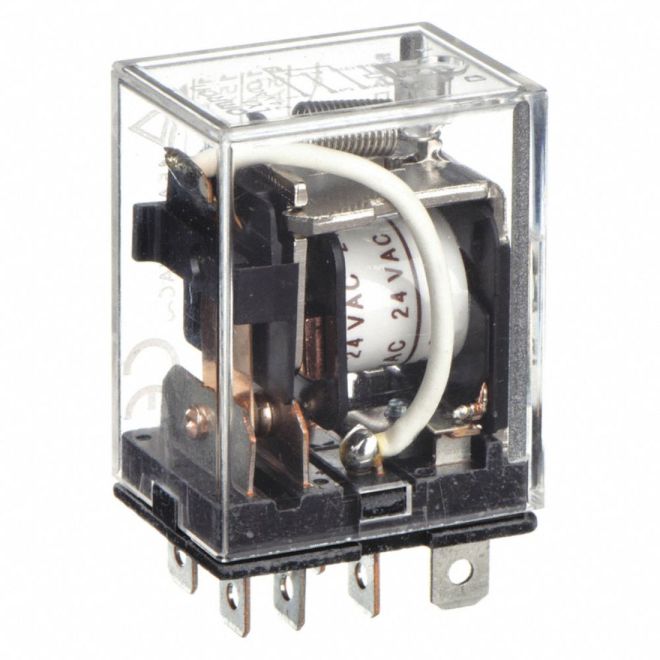

Omron LY1-AC24 1-Pole SPDT Bi-Power Relay
SKU#:
2151
Omron LY series is equipped with arc barrier and built-in diode. LY comes in single-pole, double-pole, three-pole and four-pole models. The available mounting types are DIN-rail by socket, PCB & flange mounting. LY1-AC24 is equipped with an arc barrier for arc interruption. Omron LY1AC24 is comparable to Schneider Magnecraft 782XAXC-24A, 782XBXC-24A, 782XAXCL-24A, W78ARCSX-109 & W78ARNCSX-8, Omron LY1N-AC24, TURCK Releco C7-A10/024VAC & C7-A10X/024VAC, and Cutler Hammer D7PR1T-A3 & D7PR11T-A3.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | LY1 AC24 |
| Manufacturer Alternate Number | LY1AC24 |
| UPC | 4536853605445 |
| Coil Voltage | 24VAC |
| Contact Arrangement | 1 Form C (SPDT) |
| Terminal Type | Plug-in |
| Mounting Type | Base/Socket |
| Max. Switching Voltage | 250 VAC, 125 VDC |
| Max. Switching Current | 15 A |
| Rated Current | 10 A at 110 VAC, 7 A at 24 VDC |
| Rated Load (Resistive) | 15 A at 110 VAC, 15 A at 24 VDC |
| Max. Switching Power(Resistive) | 1,700 VA, 360 W |
| Max. Switching Power (Inductive) | 1,100 VA, 170 W |
| Minimum Load | 100 mA at 5 VDC |
| Operating Temperature | -25°C - +55°C |
| Power Consumption | Approx. 1.00 VA to 1.20 VA (60 Hz) |
| RoHS Compliant | Yes |
| Duty Cycles | 200,000 |
| Height (mm) | 42.4mm |
| Width (mm) | 21.5mm |
| Depth (Length) (mm) | 28mm |
| Weight (lbs) | 0.09 |
| UOM | ea |
